VSS - Shuttle valve

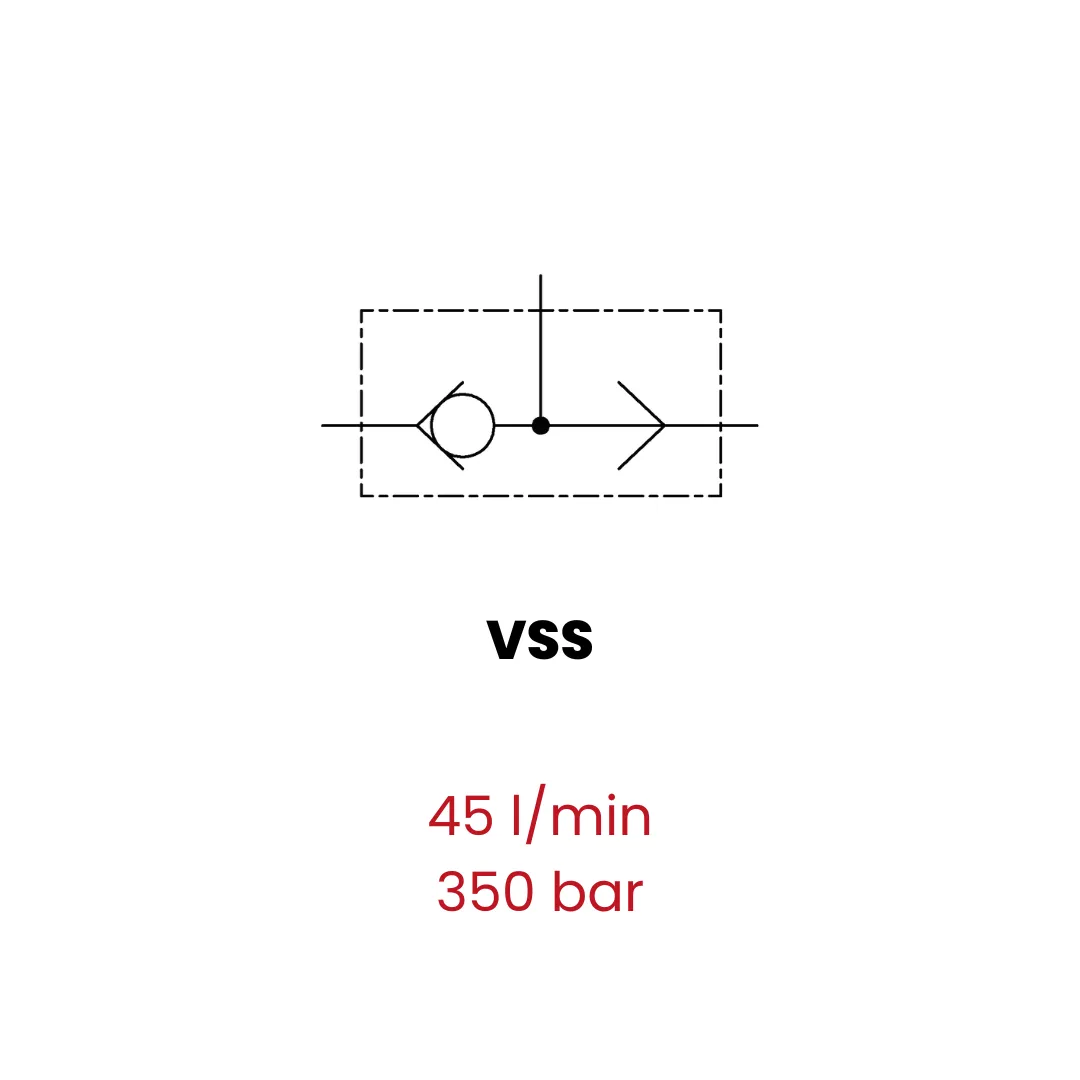

VSS - Shuttle valve (VSS) is a Fluid-App hydraulic component used to select one of two hydraulic pressure signals and route the available signal to a common outlet. This page combines model identity, available ordering variants and published technical data in one product record.
Technical details
VSS - Shuttle valve is a Fluid-App hydraulic component used to select one of two hydraulic pressure signals and route the available signal to a common outlet.
Technical identity
- Model: VSS
- Family: VSS
Ordering variants
This model has 2 recorded ordering variants in the imported catalogue data.
Ordering variants
- Ordering codes: FA6010, FA6011
- TYPE examples: VSS1B, VSS2B
Published technical data
- Ports: 1/4 BSPP, 3/8 BSPP
- Max flow: 30 [7,9], 45 [12]
- Weight: 0,29 [0,65], 0,37 [0,81]
Select the exact ordering code and TYPE by matching the required connection, pressure, flow, cavity and other published parameters. Values may differ between variants of the same technical model.
For availability, lead time, quotation or model matching, contact SUMY with the model, TYPE or ordering code whenever available.
