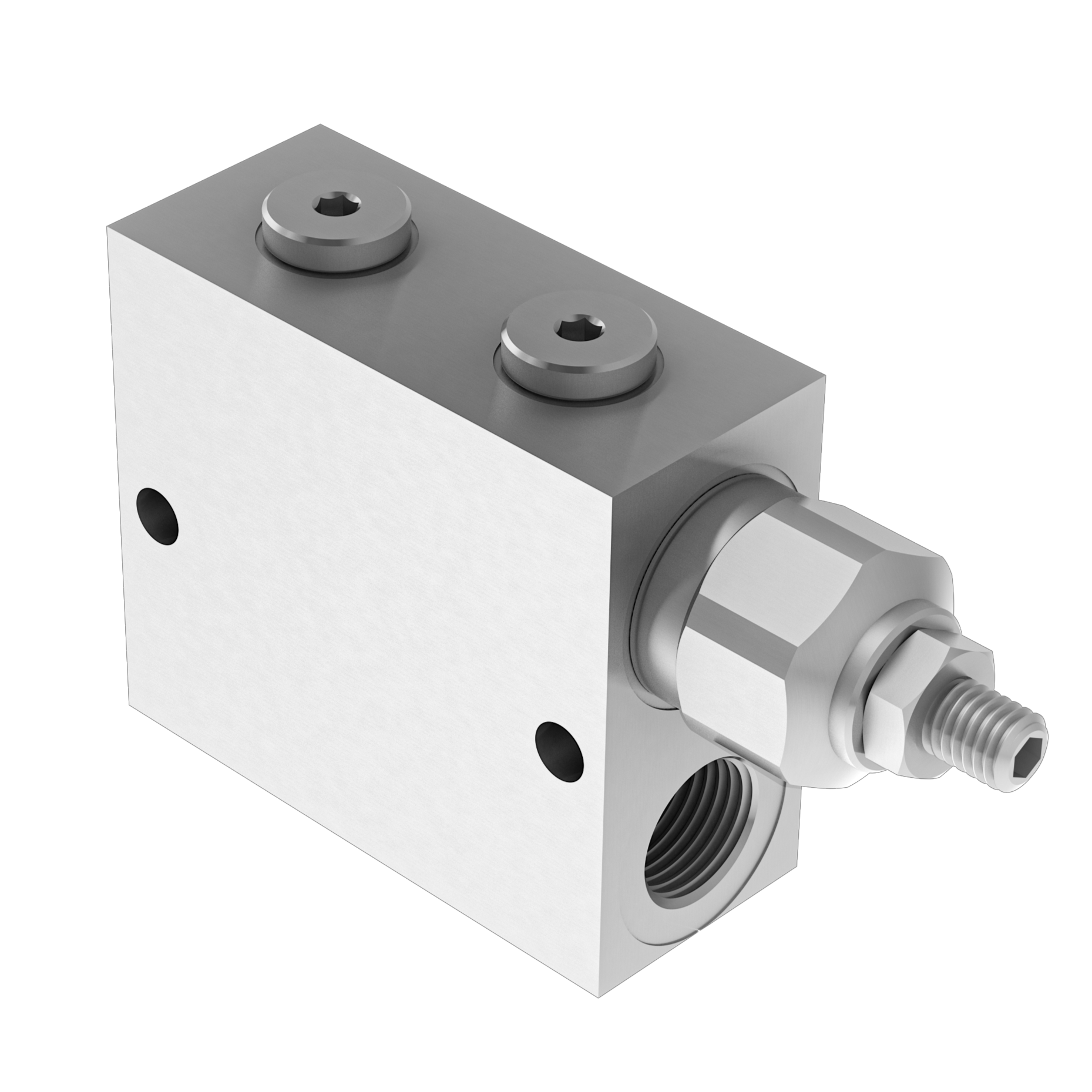

VSD - Direct acting sequence valve
VSD - Direct acting sequence valve (VSD) is a Fluid-App hydraulic component used to make a hydraulic function occur after the circuit reaches the required pressure condition. This page combines model identity, available ordering variants and published technical data in one product record.
Technical details
VSD - Direct acting sequence valve is a Fluid-App hydraulic component used to make a hydraulic function occur after the circuit reaches the required pressure condition.
Technical identity
- Model: VSD
- Family: VSD
Ordering variants
This model has 6 recorded ordering variants in the imported catalogue data.
Ordering variants
- Ordering codes: FA6012, FA6013, FA6014, FA6015, FA6016, FA6017
- TYPE examples: VSD2BC10, VSD2BC21, VSD2BC35, VSD3BC10, VSD3BC21, VSD3BC35
Published technical data
- Ports: 3/8 BSPP, 17 [0,67] 35 [1,38] FA6016 VSD3BC21 1/2 BSPP
- Max flow: 40 [10,6], 50 [13,2]
- Weight: 0,9 [1,98], 1 [2,21]
Select the exact ordering code and TYPE by matching the required connection, pressure, flow, cavity and other published parameters. Values may differ between variants of the same technical model.
For availability, lead time, quotation or model matching, contact SUMY with the model, TYPE or ordering code whenever available.
