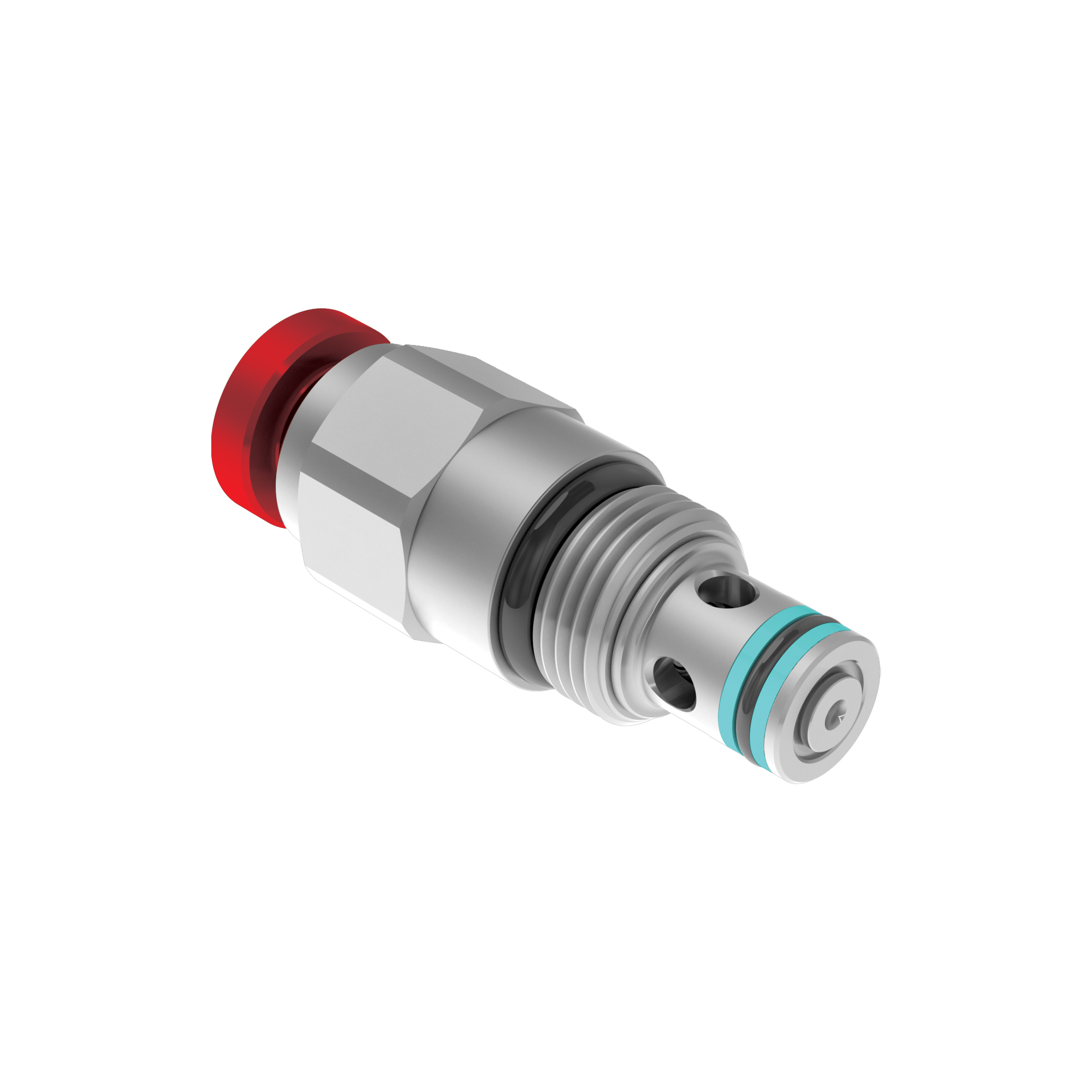

VM2 - Emergency valves SAE8/2

VM2 - Emergency valves SAE8/2

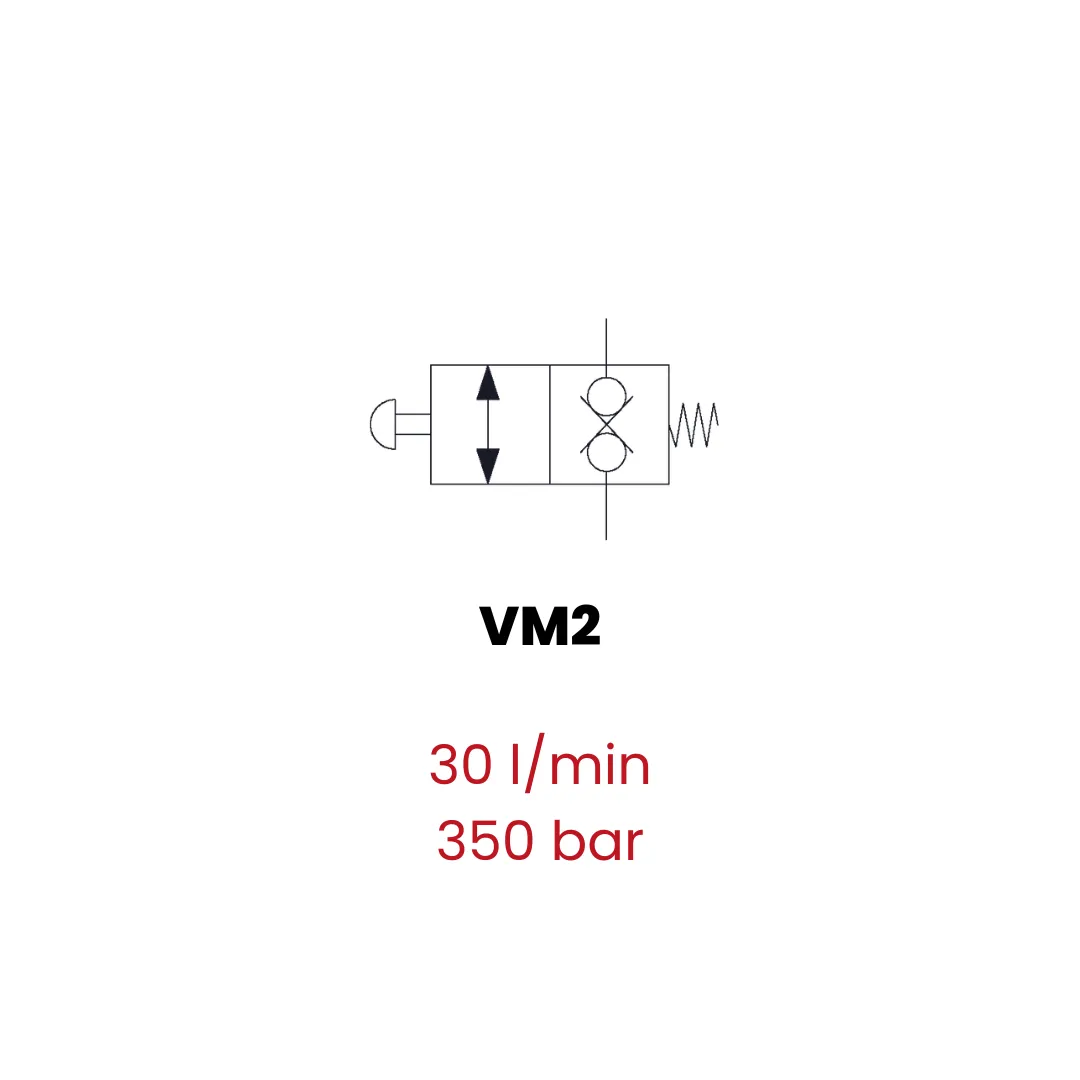

The bidirectional valves, with direct action VM2 normally closed 2 ways 2 positions, allow manual intervention, the opening is obtained by manually pushing the rear button, removing the hand automatically the valve closes.

Technical details

The VM2 valves allow for manual emergency intervention, they are normally closed bidirectional valves

They are available in SAE8/2 cavities, the seal, in both directions, is guaranteed by a conical shutter in hardened and ground steel, the other details are made of high-strength steel and externally protected from oxidation with a zinc plated, the button is made in aluminum.

Request informations

"*" indicates required fields

Technical specifications
Max flow30 l/min
Max pressure350 bar

Technical documents

Product gallery

VM2 - Emergency valves SAE8/2
Emergency valves SAE8/2 - Image 2
Fluid-App
Emergency valves SAE8/2

Ordering codes

Ordering codeTypeDatasheet page
FA7026VM21
FA7067VM20M1
