Flow divider 3/8-1/2 BSPP

VDF - Flow divider 3/8-1/2 BSPP

Flow dividers/unifiers allow the inlet flow to be divided into two equal parts, while in the opposite direction they unify it.

Technical details

2 way flow diverter/combiner

They are used to move two identical actuators powered by the same pump and controlled by the same distributor, because they allow the fluid to be divided into two equal parts in one direction and reunited in the opposite direction, regardless of the pressure and flow generated in the circuit.

The external body is made of aluminum.



Request informations

"*" indicates required fields

Technical specifications
Max flow40 l/min
Max pressure210 bar

Technical documents

Product gallery

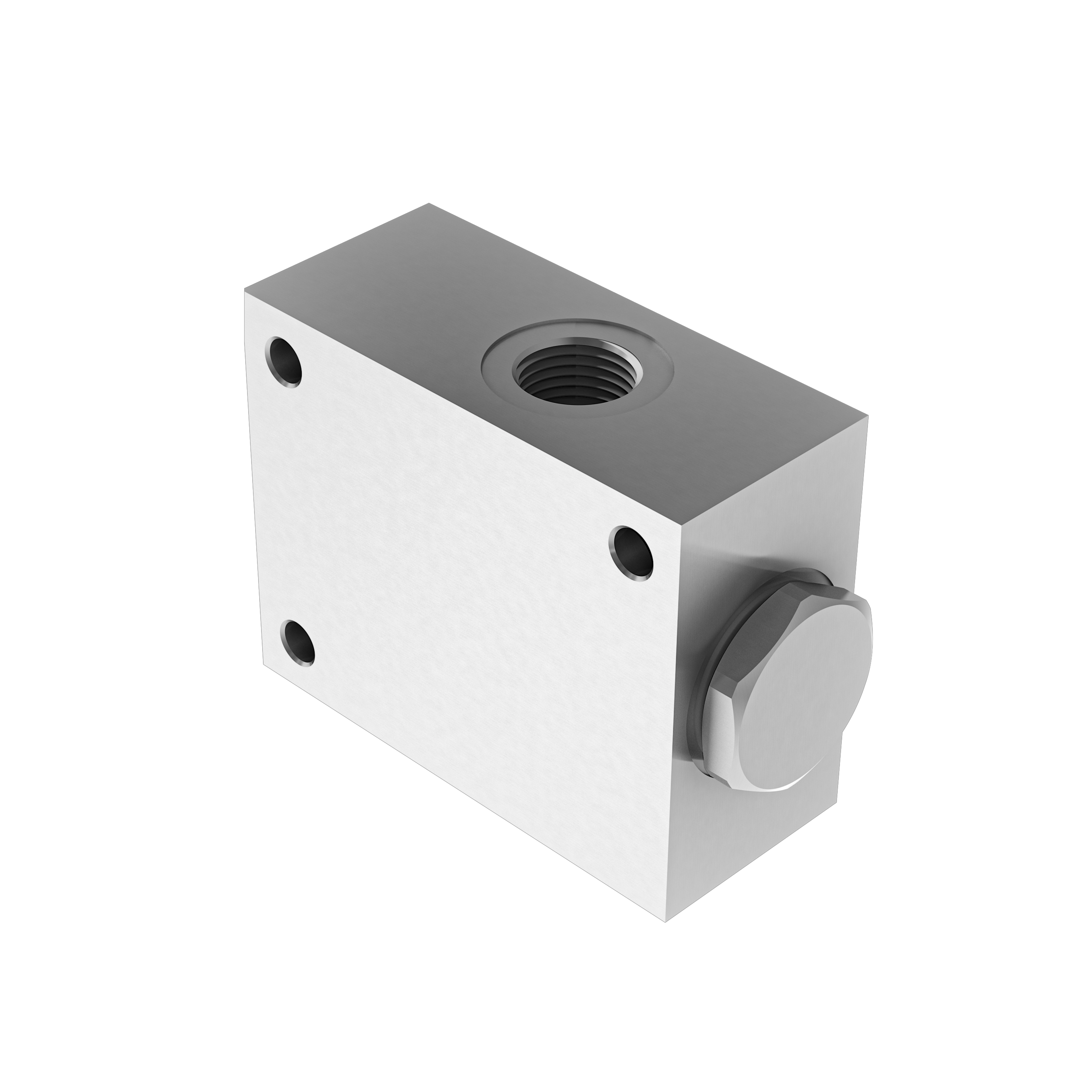

Flow divider 3/8-1/2 BSPP

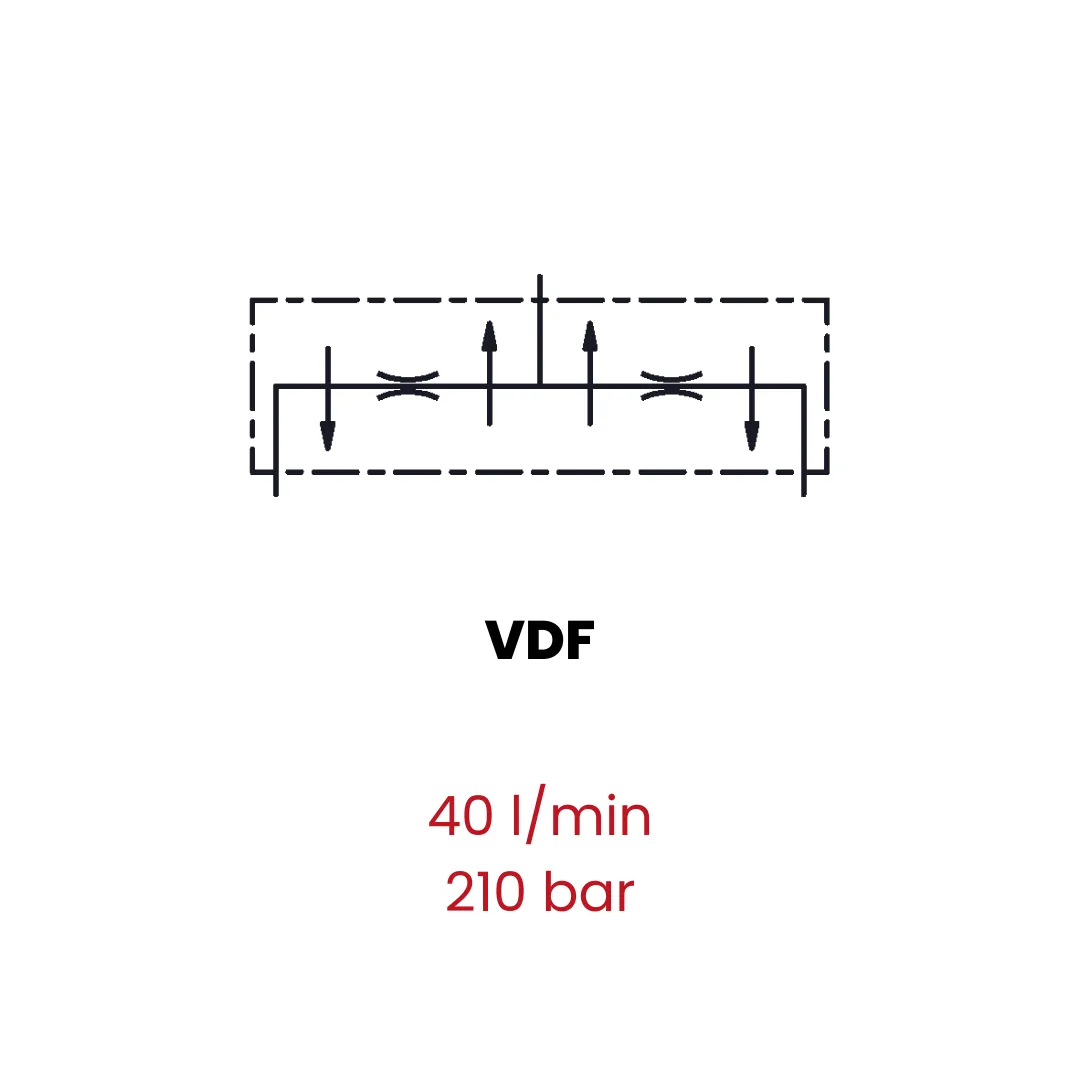

Flow divider 3/8-1/2 BSPP - Image 2
Fluid-App

Ordering codes

Ordering codeTypeDatasheet page
FA4060VDF2B2B11
FA4061VDF2B2B21
FA4062VDF2B2B31
FA4063VDF2B2B41
FA4064VDF3B2B41
FA4065VDF3B3B31
FA4066VDF3B3B41
