VC - Unidirectional and bidirectional flow control valves

VCB - Unidirectional and bidirectional flow control valves

VC control valves (Gas thread) regulate the speed of an actuator in one direction (VCU) or in both directions (VCB).

Technical details

Unidirectional and bidirectional flow regulators

VCU unidirectional control valve allows the free passage of oil in one direction and regulates the flow in the opposite direction, the bidirectional VCB version regulates it in both directions. Usually, the valve is mounted between the cylinder and the block valve.

Request informations

"*" indicates required fields

Technical specifications
Max flow45 l/min
Max pressure350 bar

Technical documents

Product gallery

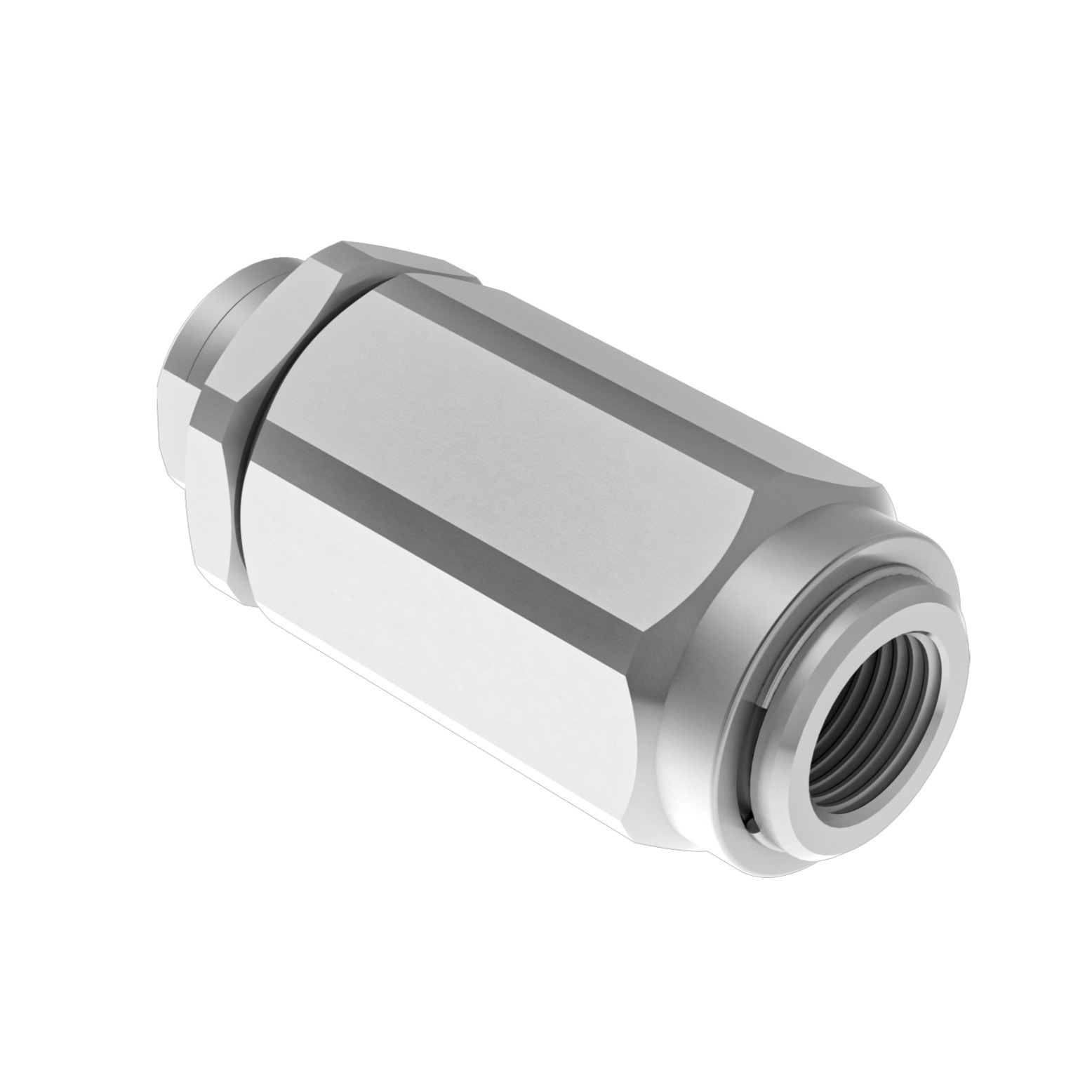

VC - Unidirectional and bidirectional flow control valves

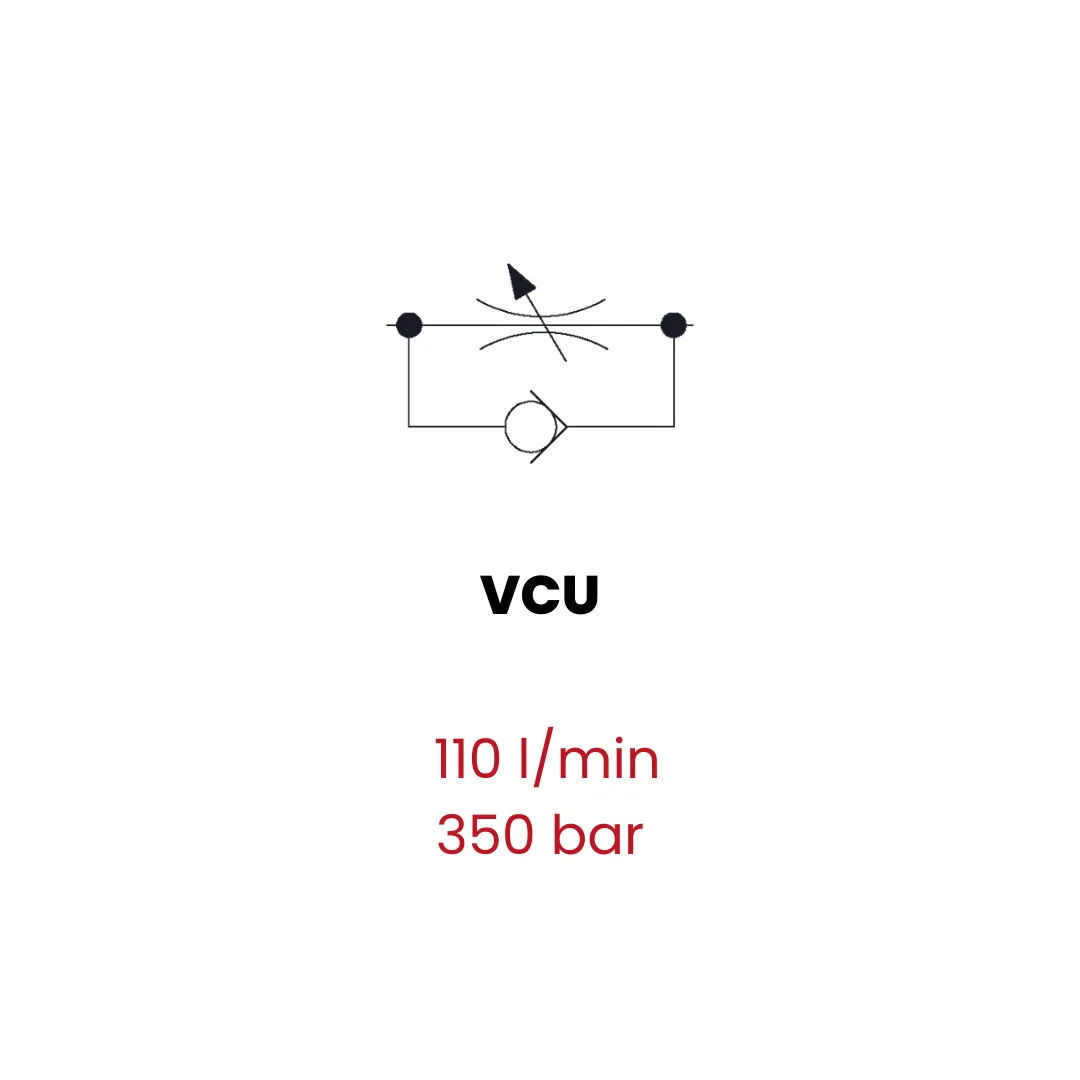

Unidirectional and bidirectional flow control valves - Image 2
Unidirectional and bidirectional flow control valves - Image 3

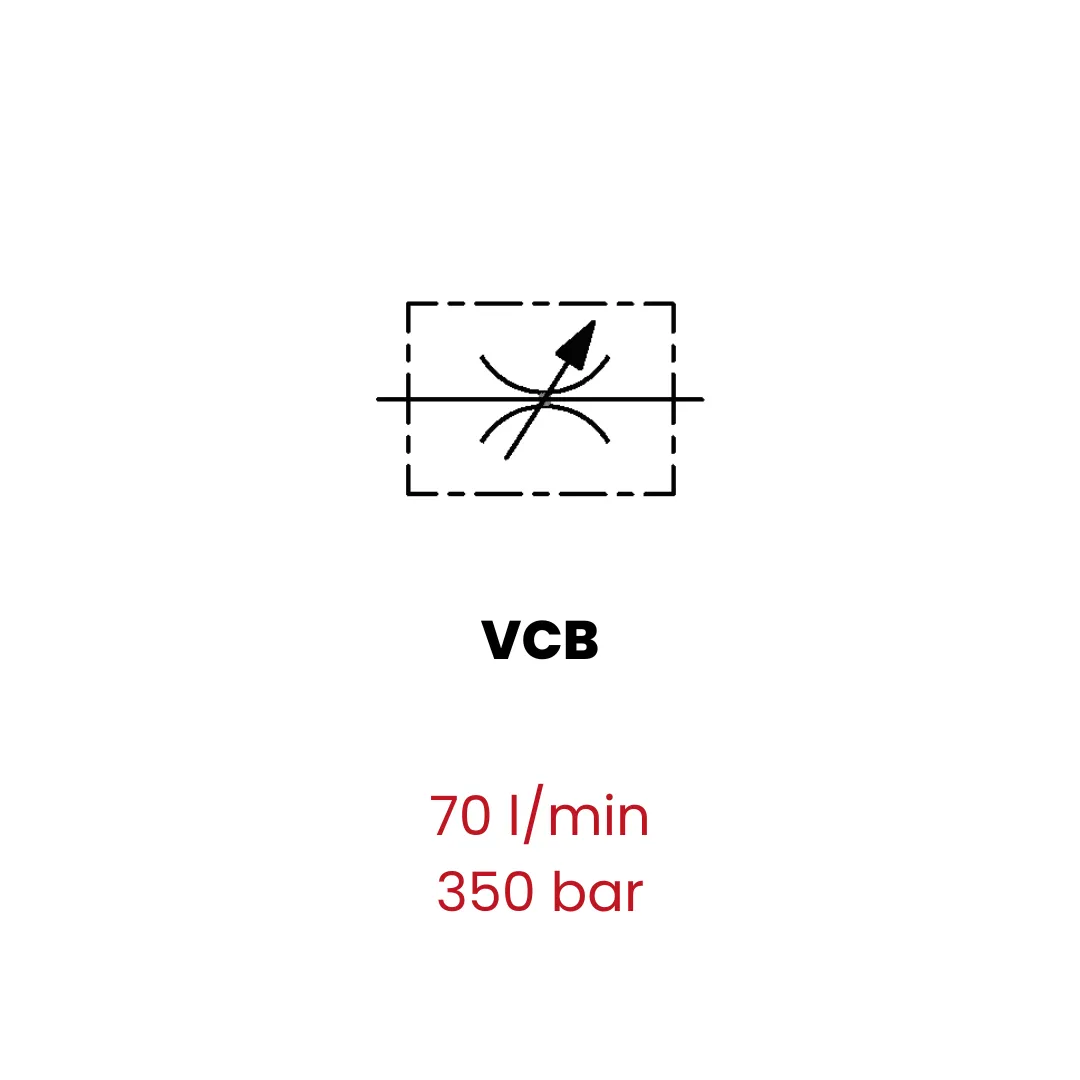

Unidirectional and bidirectional flow control valves - Image 4
Fluid-App
Unidirectional and bidirectional flow control valves

Ordering codes

Ordering codeTypeDatasheet page
FA4050VCB1B1
FA4051VCB2B1
