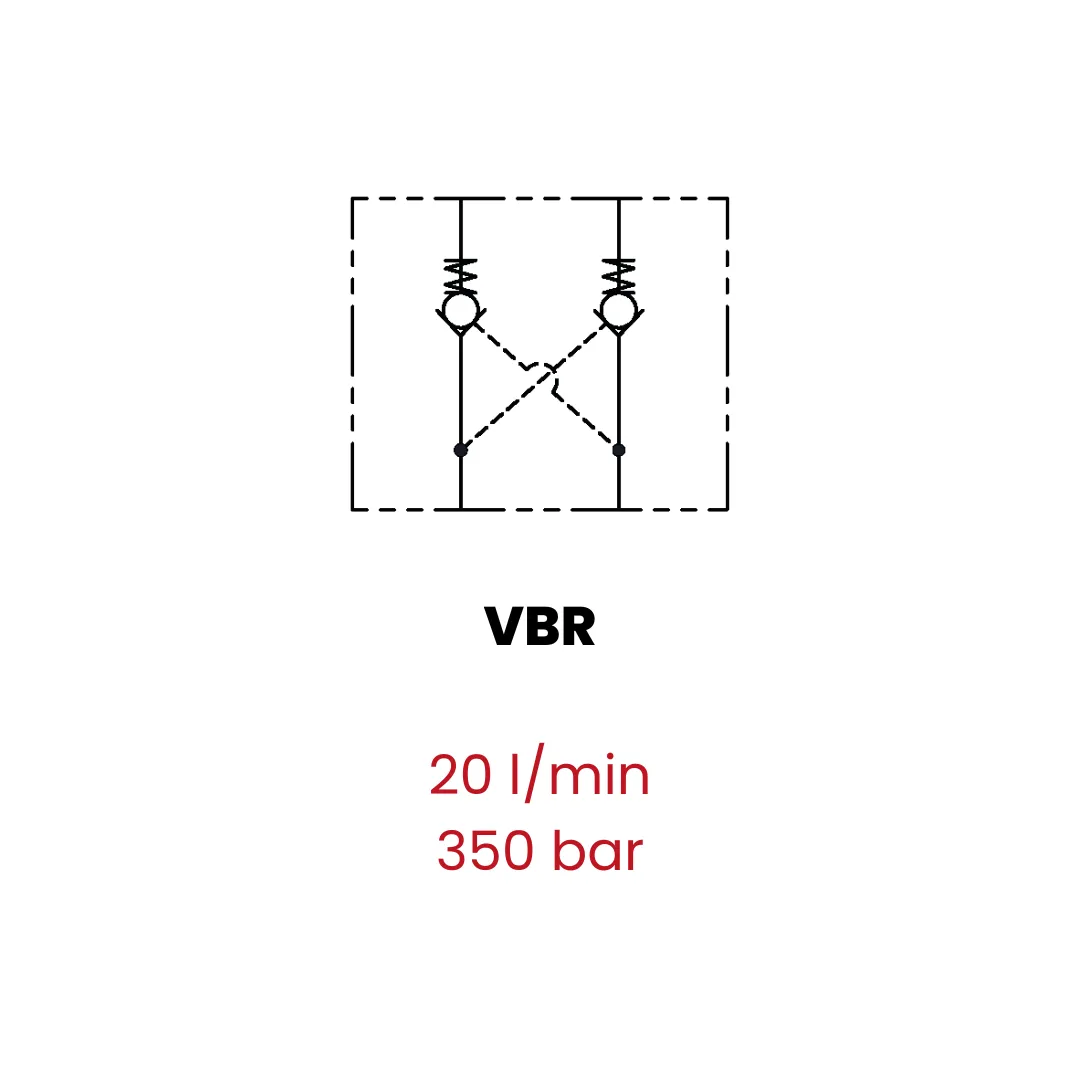

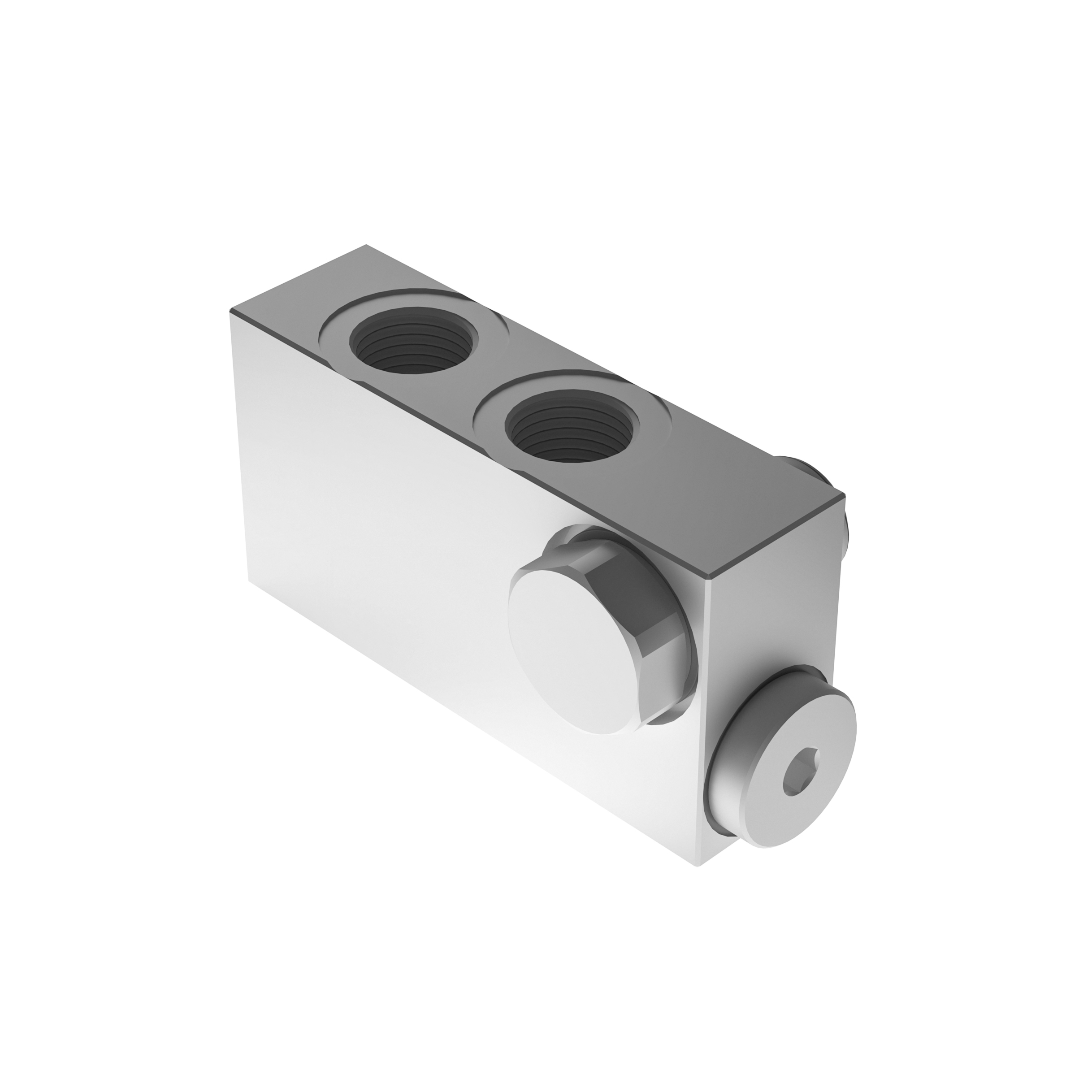

VBR - Double-acting pilot-operated check valves with bolt fitting
VBR - Double-acting pilot-operated check valves with bolt fitting (VBR) is a Fluid-App hydraulic component designed to hold or control an actuator load and to prevent unintended movement until the required pilot or control condition is present. This page combines model identity, available ordering variants and published technical data in one product record.
Technical details
VBR - Double-acting pilot-operated check valves with bolt fitting is a Fluid-App hydraulic component designed to hold or control an actuator load and to prevent unintended movement until the required pilot or control condition is present.
Technical identity
- Model: VBR
- Family: VBR
Ordering variants
This model has 1 recorded ordering variant in the imported catalogue data.
Ordering variants
- Ordering codes: FA5061
- TYPE examples: VBR2B
Published technical data
- Ports: VBR2B 3/8 BSPP
- Max flow: 20 [5,3]
- Max pressure: 350 [5075]
- Cracking pressure: 4,5 [65]
- Pilot ratio: 1:5
- Weight: O,6 [1,32]
Select the exact ordering code and TYPE by matching the required connection, pressure, flow, cavity and other published parameters. Values may differ between variants of the same technical model.
For availability, lead time, quotation or model matching, contact SUMY with the model, TYPE or ordering code whenever available.
