VBC - Single acting pilot check valves M22x1.5

VBC - Single acting pilot check valves M22x1.5

VBC check valves are used to lock a single acting actuator in position , ensuring the blocking of the load.

Technical details

VBC are used to check a single acting cylinder

The valves guarantee the blocking of a certain load in the desired position, they are used with single-acting cylinders, for the release they require a pilot pressure.

The external body is made of high-strength steel and externally protected from oxidation with a zinc plated.

The seal is guaranteed by a hardened and ground conical poppet.



Request informations

"*" indicates required fields

Technical specifications
Max flow60 l/min
Max pressure350 bar

Technical documents

Product gallery

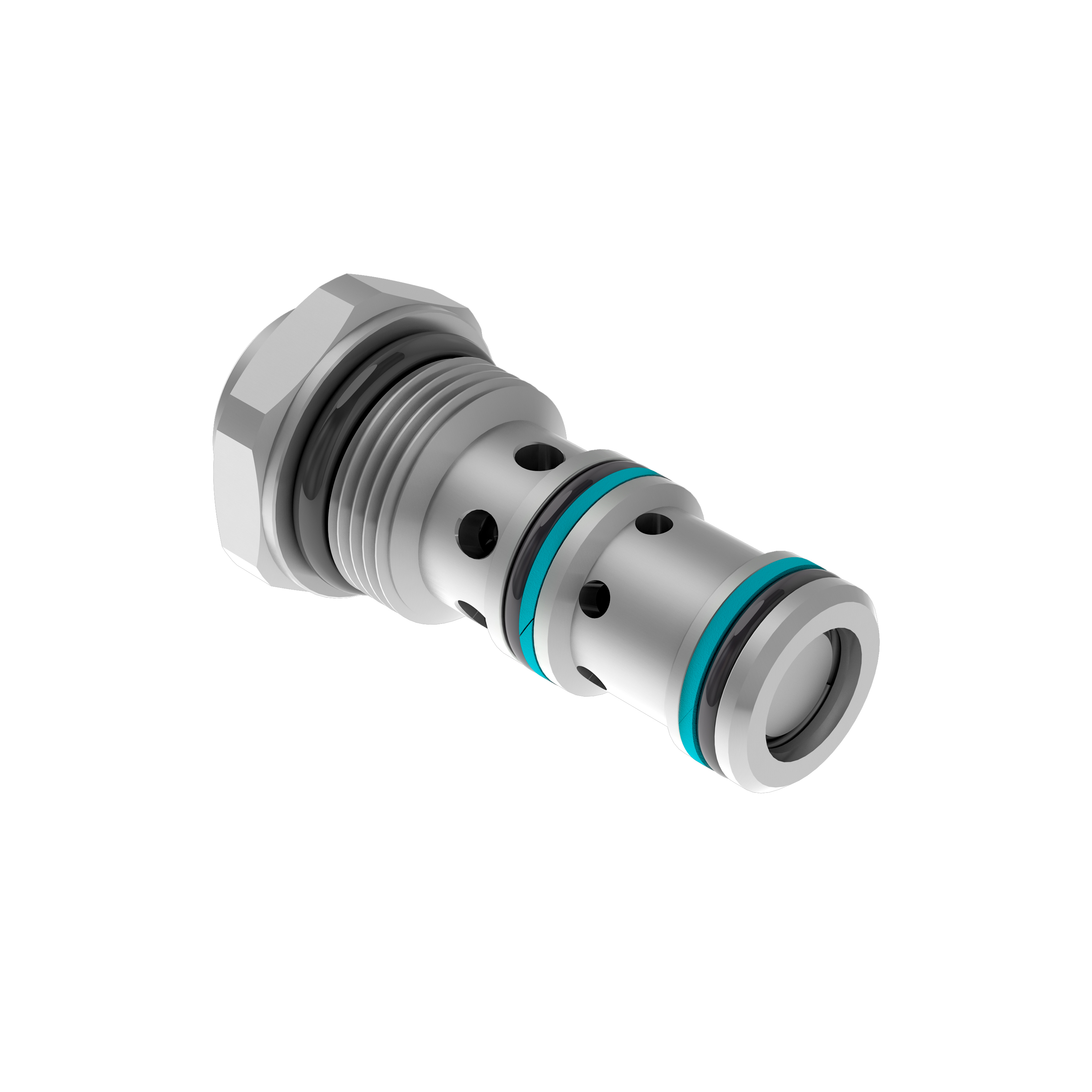

VBC - Single acting pilot check valves M22x1.5

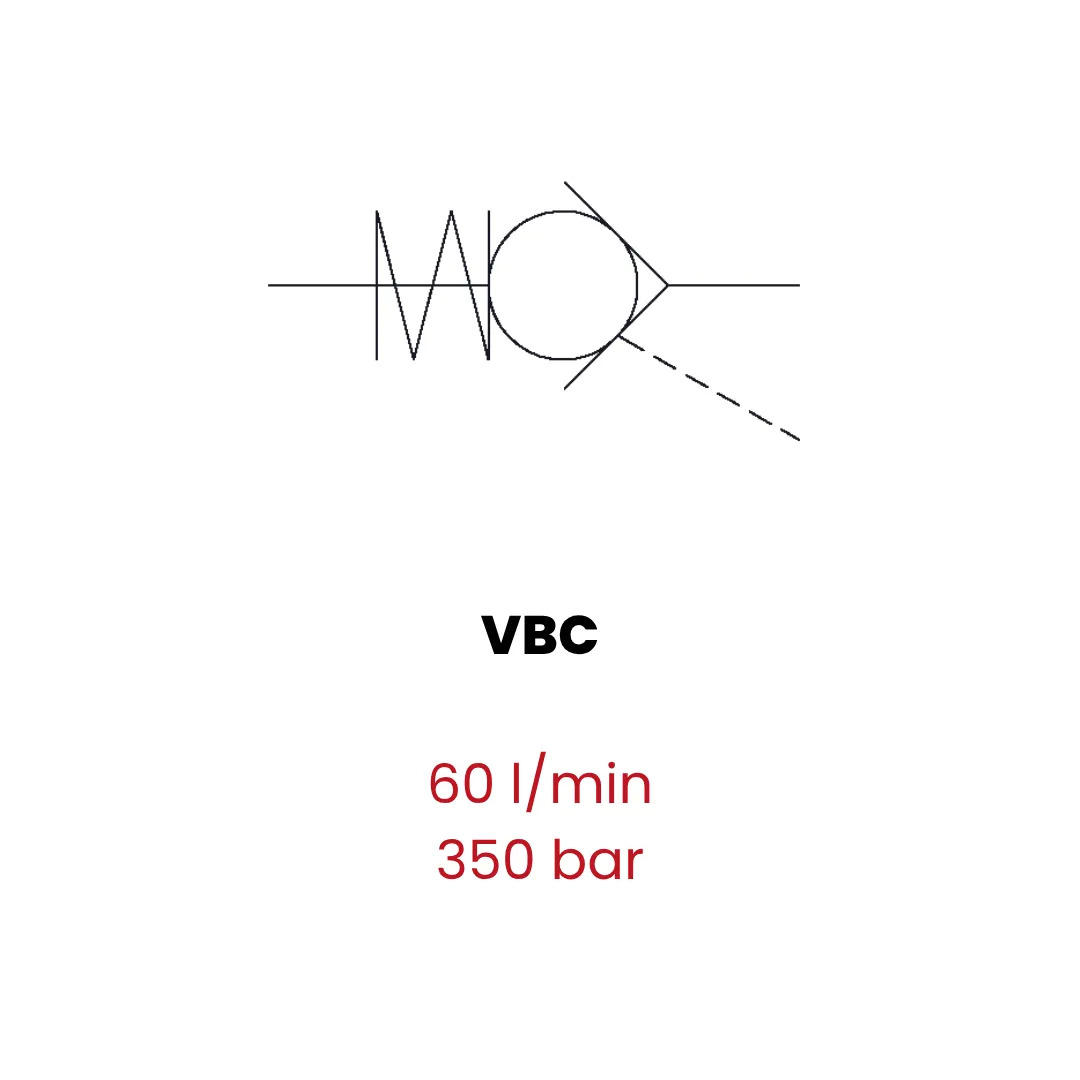

Single acting pilot check valves M22x1.5 - Image 2
Fluid-App
Single acting pilot check valves M22x1.5

Ordering codes

Ordering codeTypeDatasheet page
FA7036VBC22501
