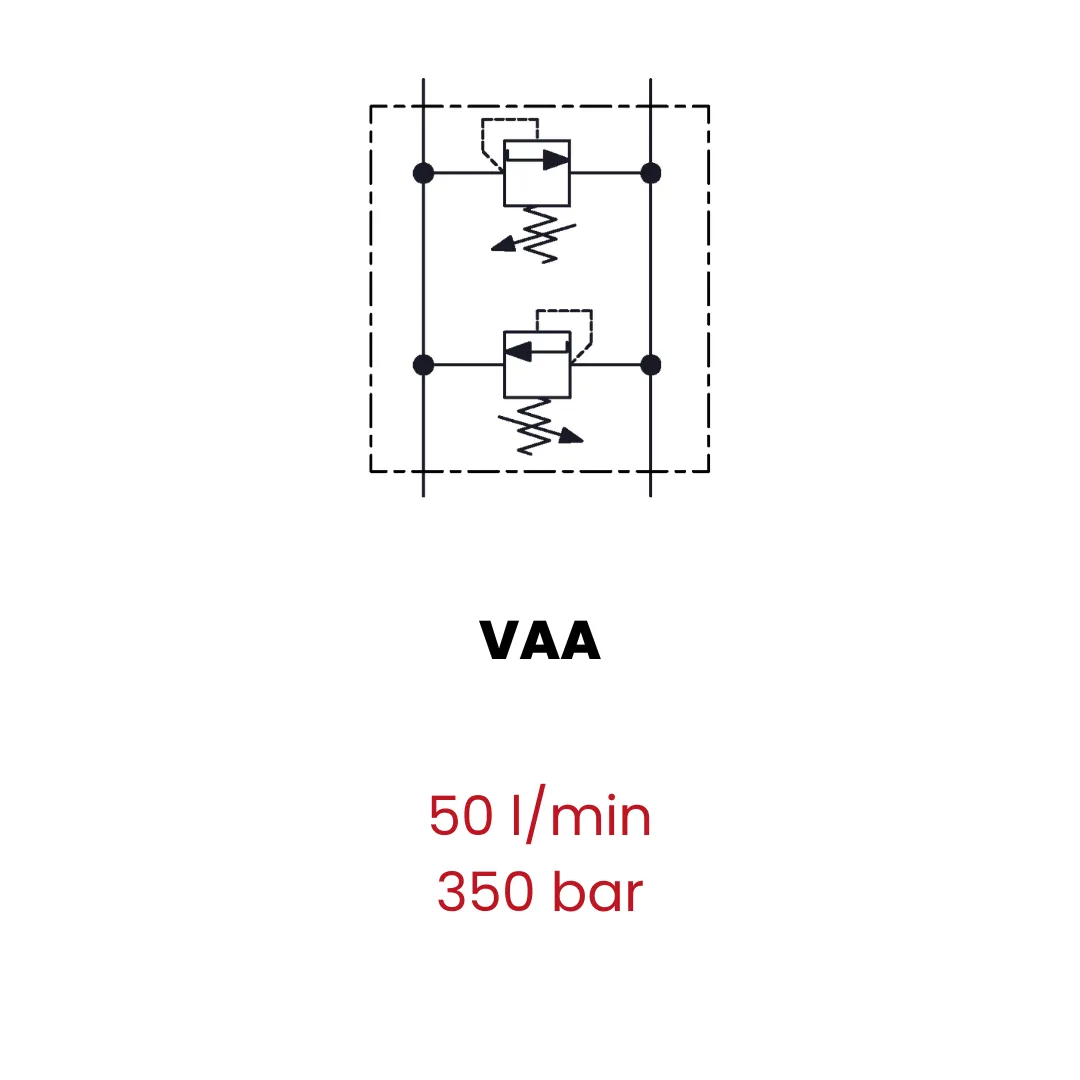

VAA - Double cross relief valves
VAA - Double cross relief valves (VAA) is a Fluid-App hydraulic component used to limit or relieve hydraulic pressure and protect the circuit against pressure above the selected setting. This page combines model identity, available ordering variants and published technical data in one product record.
Technical details
VAA - Double cross relief valves is a Fluid-App hydraulic component used to limit or relieve hydraulic pressure and protect the circuit against pressure above the selected setting.
Technical identity
- Model: VAA
- Family: VAA
Ordering variants
This model has 6 recorded ordering variants in the imported catalogue data.
Ordering variants
- Ordering codes: FA6039, FA6040, FA6041, FA6042, FA6043, FA6044
- TYPE examples: VAA2BC10, VAA2BC21, VAA2BC35, VAA3BC10, VAA3BC21, VAA3BC35
Published technical data
- Ports: 3/8 BSPP, VAA3BC10, 1/2 BSPP
- Max flow: 40 [10,6], 50 [13,2]
- Weight: 21 [0,82] 49 [1,93] 1,22 [2,68], 18,5 [0,73] 51,5 [2,03] 1,16 [2,55]
Select the exact ordering code and TYPE by matching the required connection, pressure, flow, cavity and other published parameters. Values may differ between variants of the same technical model.
For availability, lead time, quotation or model matching, contact SUMY with the model, TYPE or ordering code whenever available.
