SUA - Unidirectional flow control valve

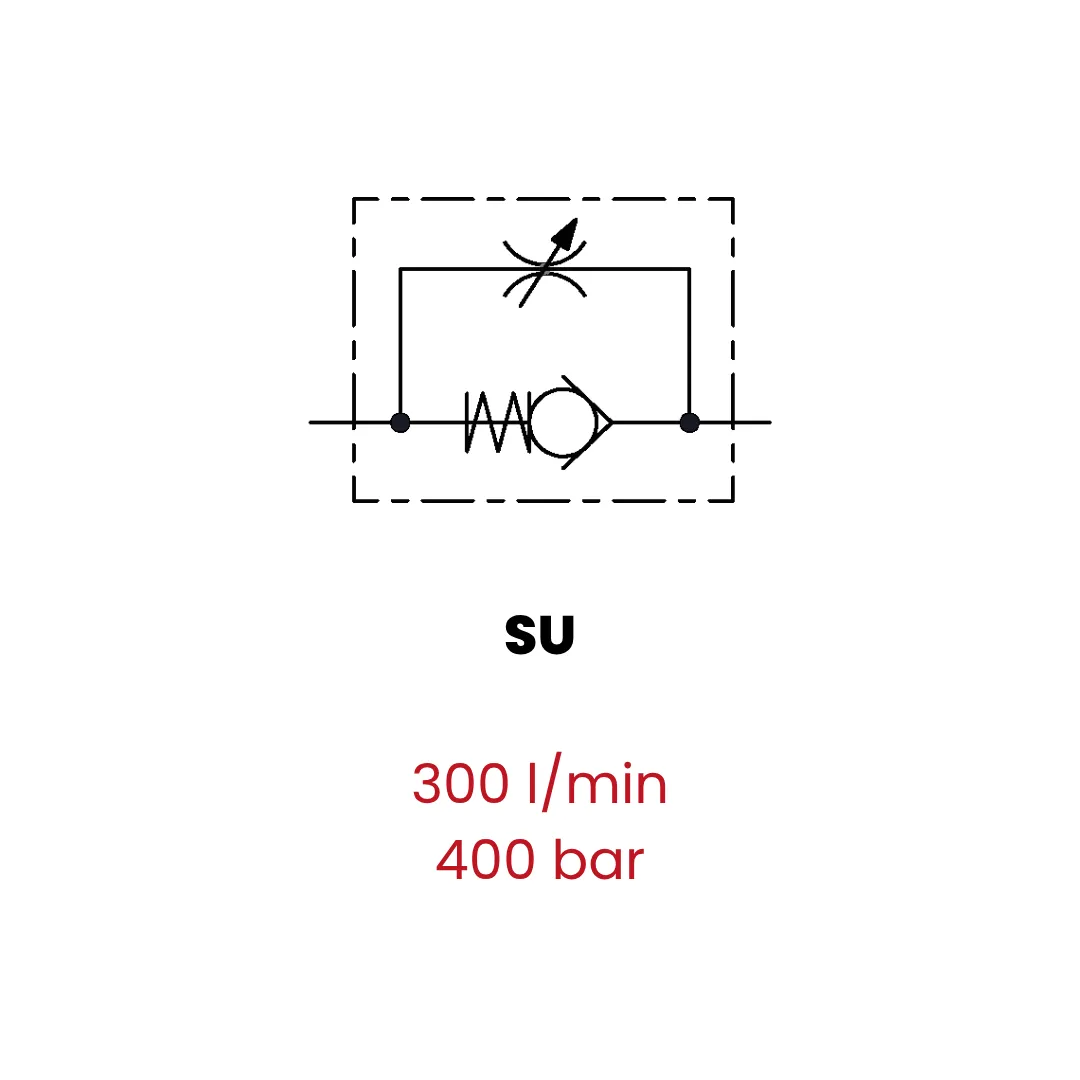

The unidirectional control valves (Gas thread) allow the free passage of the oil in one direction and regulate it in the opposite direction.
Technical details

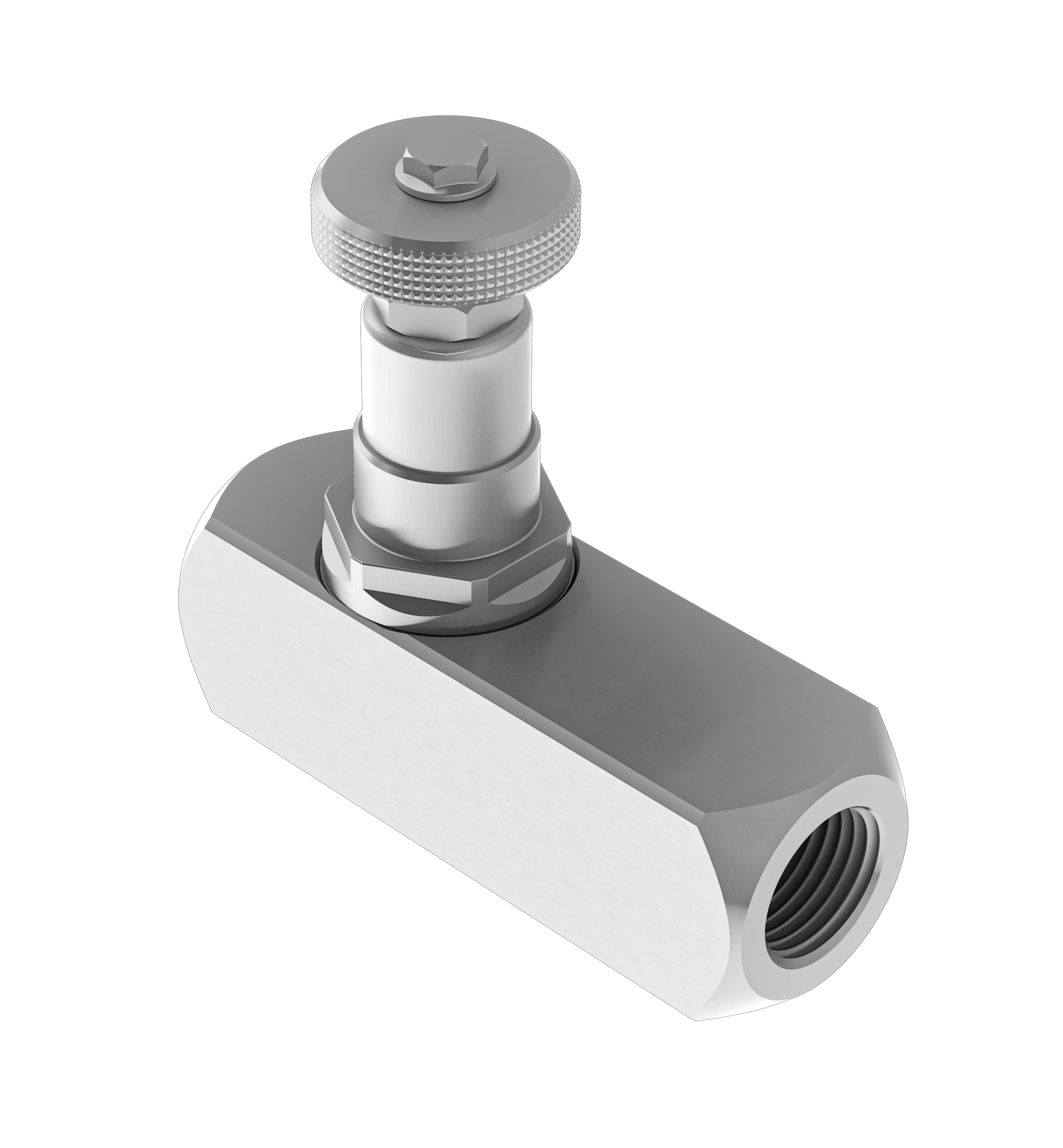

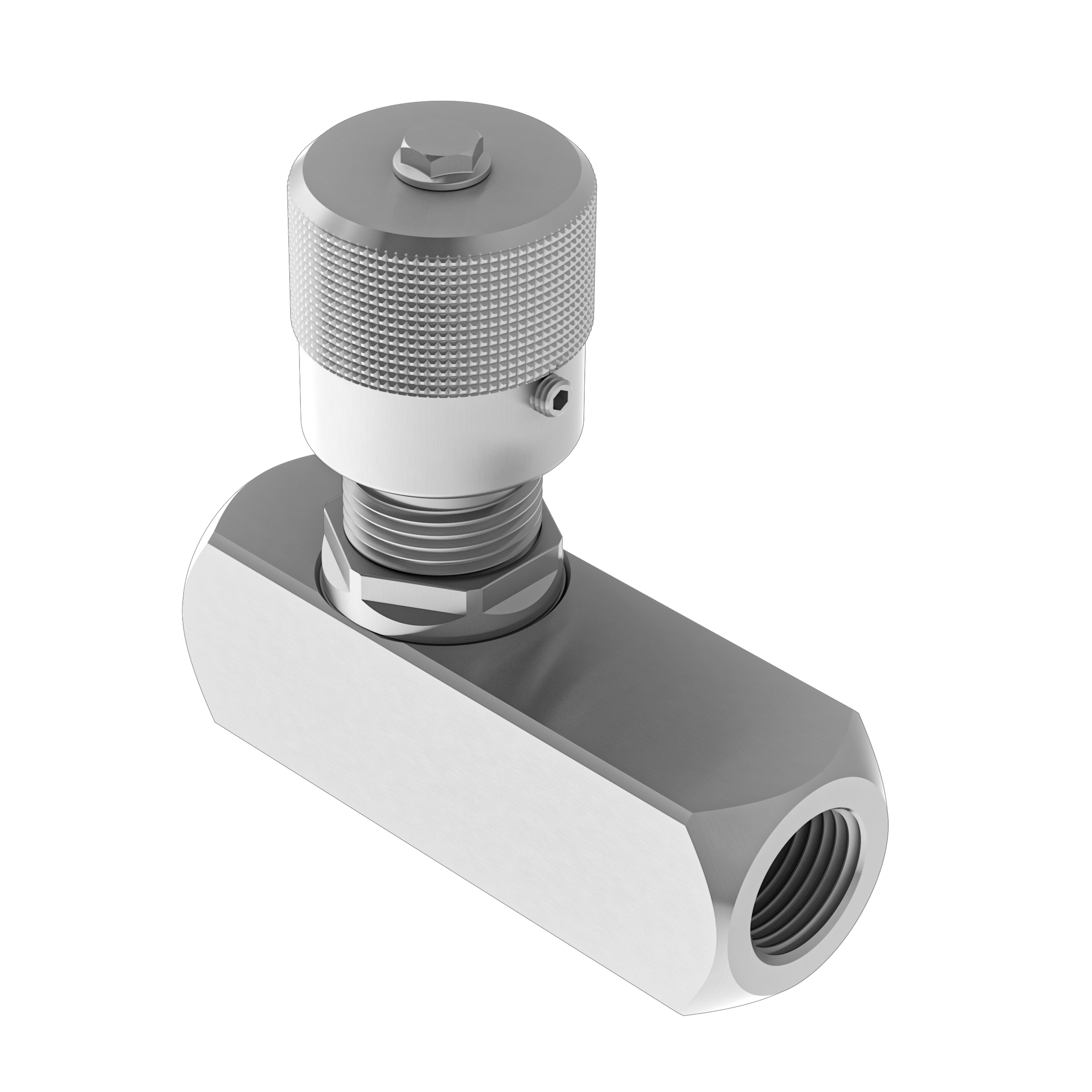

Unidirectional flow regulators by rotary knob
It is used when you want to regulate the oil flow in one direction and have the full flow rate in the opposite one, the valve is not compensated therefore the regulation will depend on the operating pressure, viscosity and temperature of the fluid.
The range includes different threads starting from 1/4 BSPP (1/4 G) up to 1 BSPP (1 G).
The external body is made of high-strength steel and externally protected from oxidation with a zinc plated treatment, it is possible to request a surface treatment in zinc/nickel to increase the resistance to oxidation, in the event that, for example, the valve is not very protected. and exposed to atmospheric agents.
Request informations
"*" indicates required fields
| Max flow | 300 l/min |
|---|---|
| Max pressure | 400 bar |
Technical documents
Product gallery
Ordering codes
| Ordering code | Type | Datasheet page |
|---|---|---|
| FA4031 | SUA1B | 1 |
| FA4032 | SUA2B | 1 |
| FA4033 | SUA3B | 1 |
| FA4034 | SUA4B | 1 |
| FA4035 | SUA5B | 1 |
| FA4170 | SUA6B | 1 |
| FA4171 | SUA7B | 1 |
| FA4206 | SUA0BYA | 1 |
