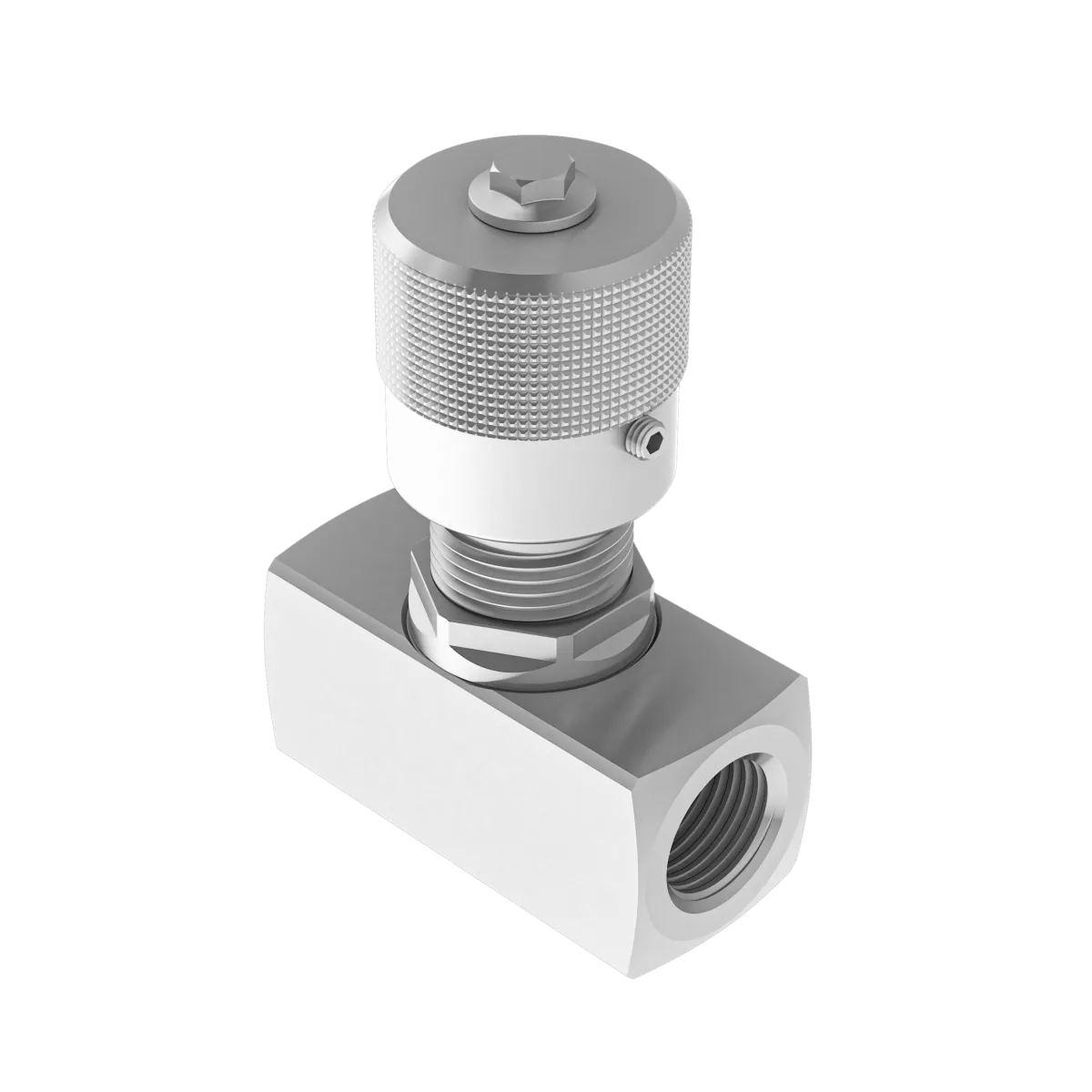

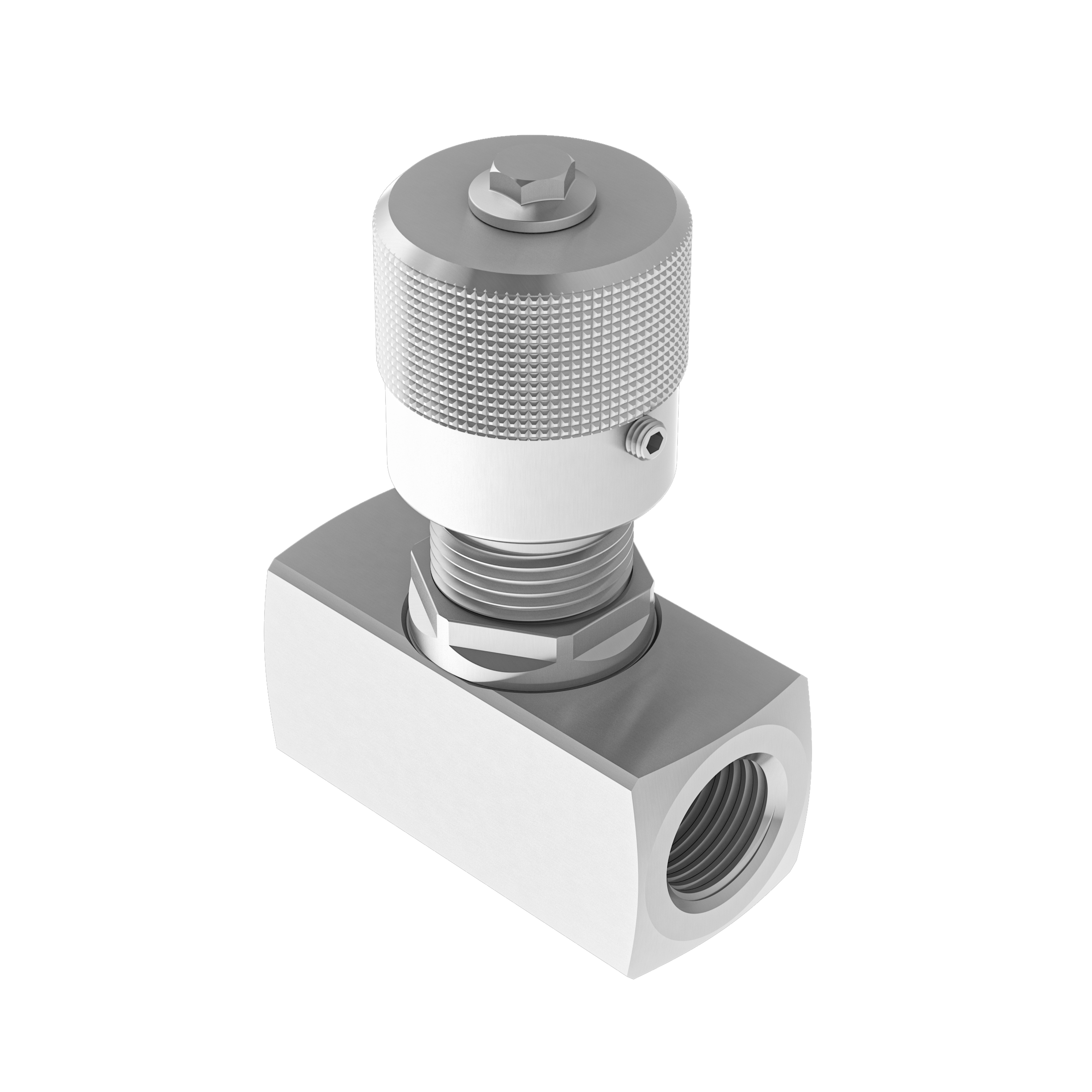

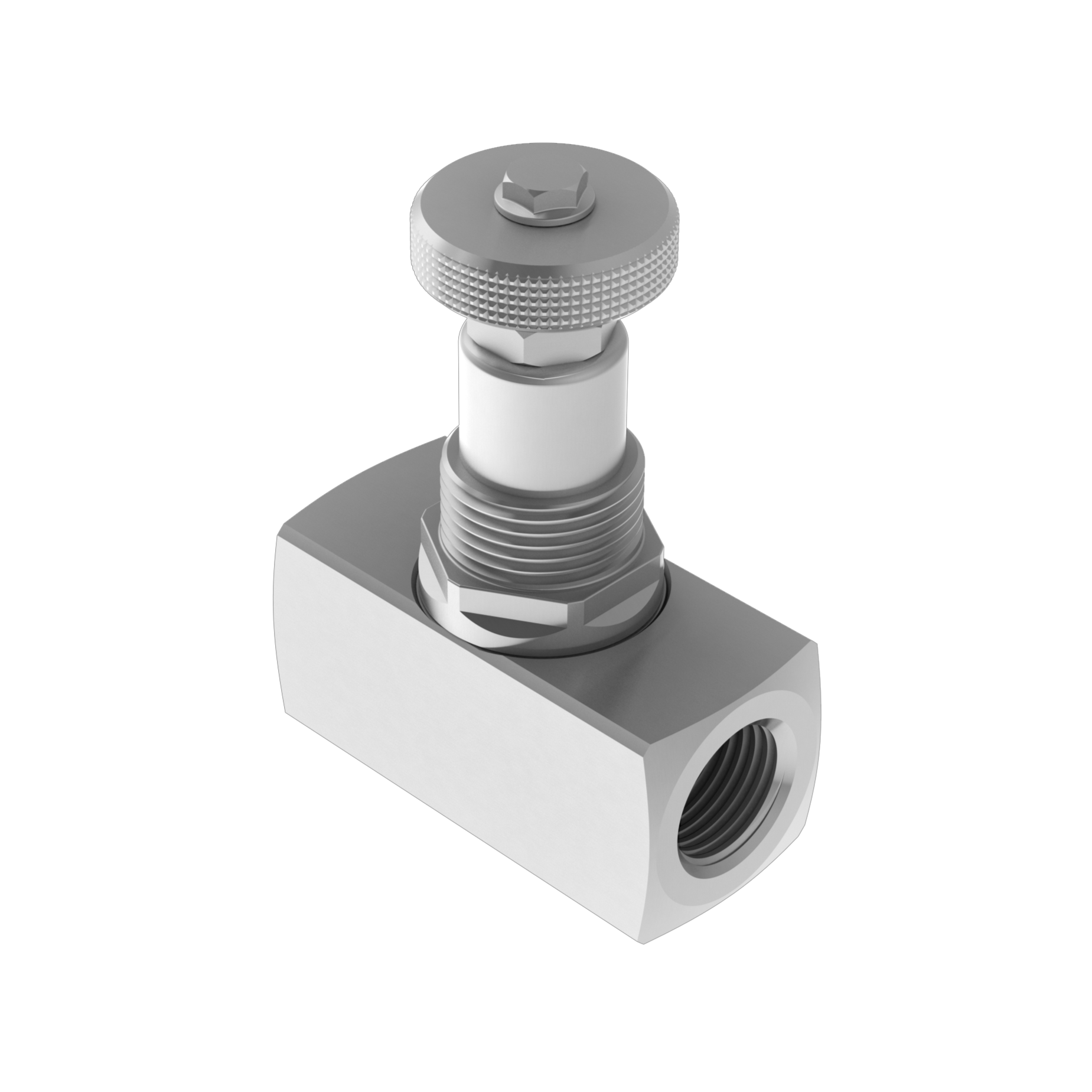

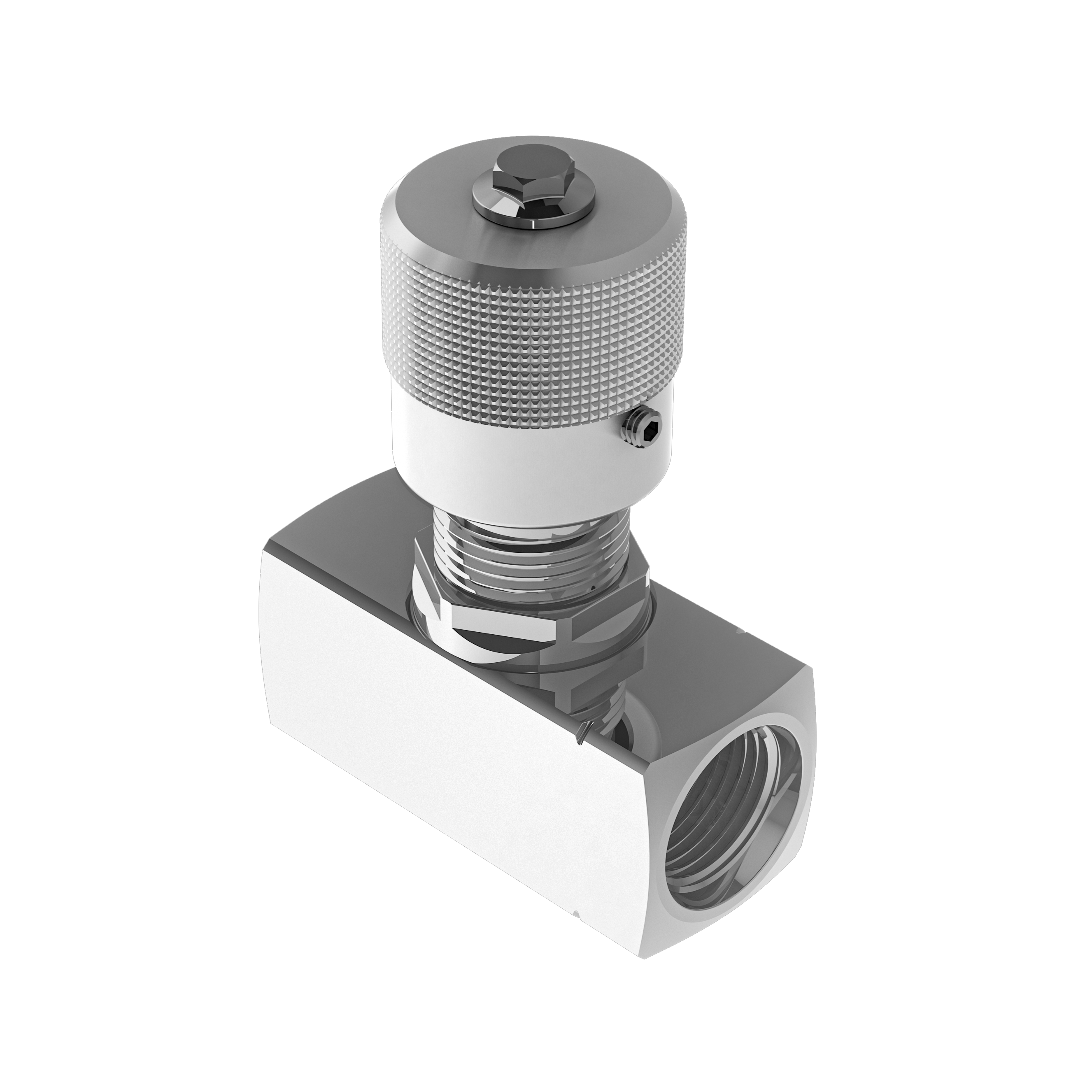

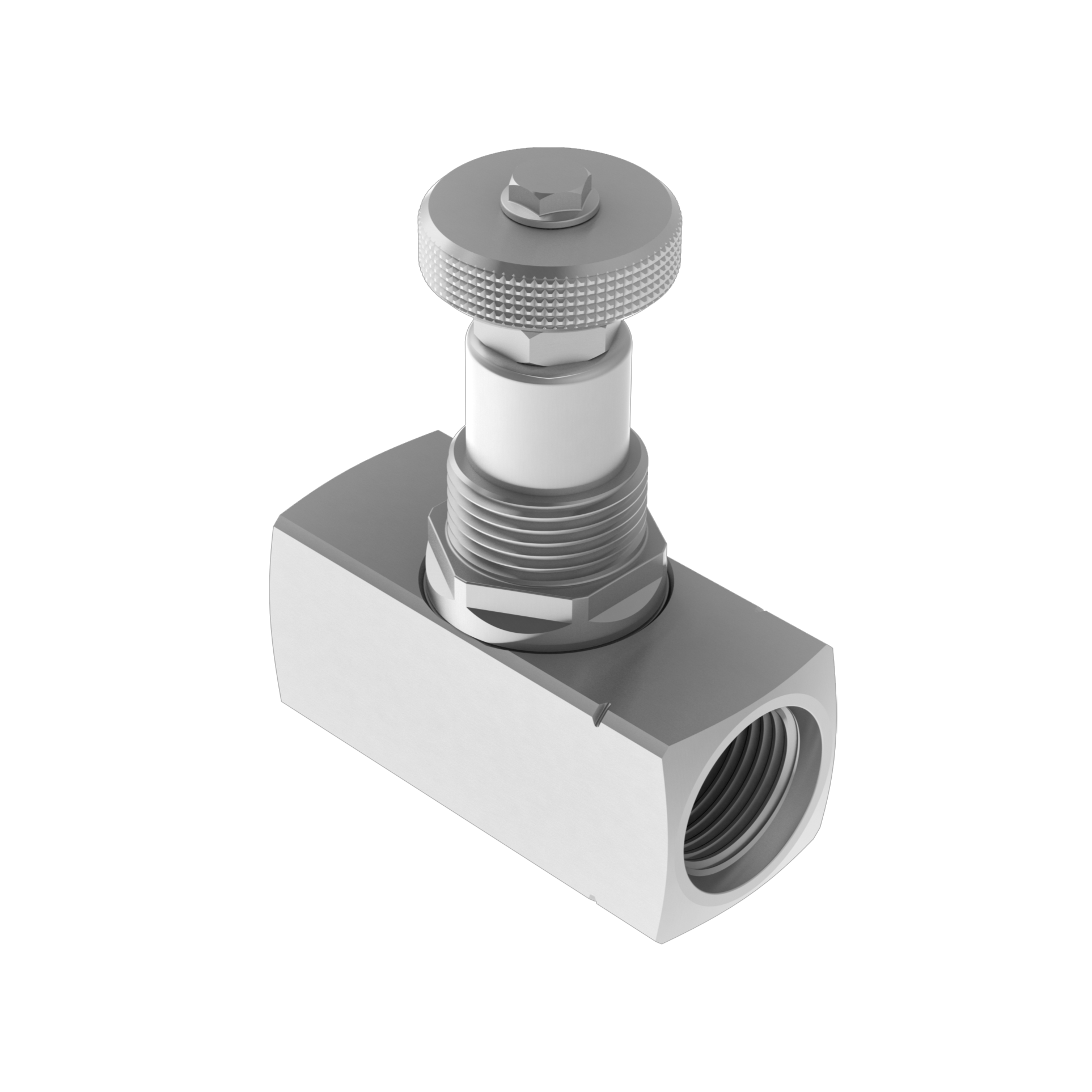

SBD SAE - Bidirectional flow control valves

Bidirectional flow regulators

They are used when it is necessary to regulate the oil flow in both directions, it is not pressure compensated therefore the regulation will depend on the operating pressure, the viscosity of the fluid and the operating temperature.

The range includes different threads SAE (starting from SAE4 up to SAE24) and NPTF (starting from 1/4 NPTF up to 1-1/2 NPTF).

Adjustment is made by turning the knob clockwise or counterclockwise.

The external body is made of high-strength steel and externally protected from oxidation with a zinc pla, it is possible to request a surface treatment in zinc / nickel to increase the resistance to oxidation, in the event that, for example, the valve is not very protected. and exposed to atmospheric agents.
