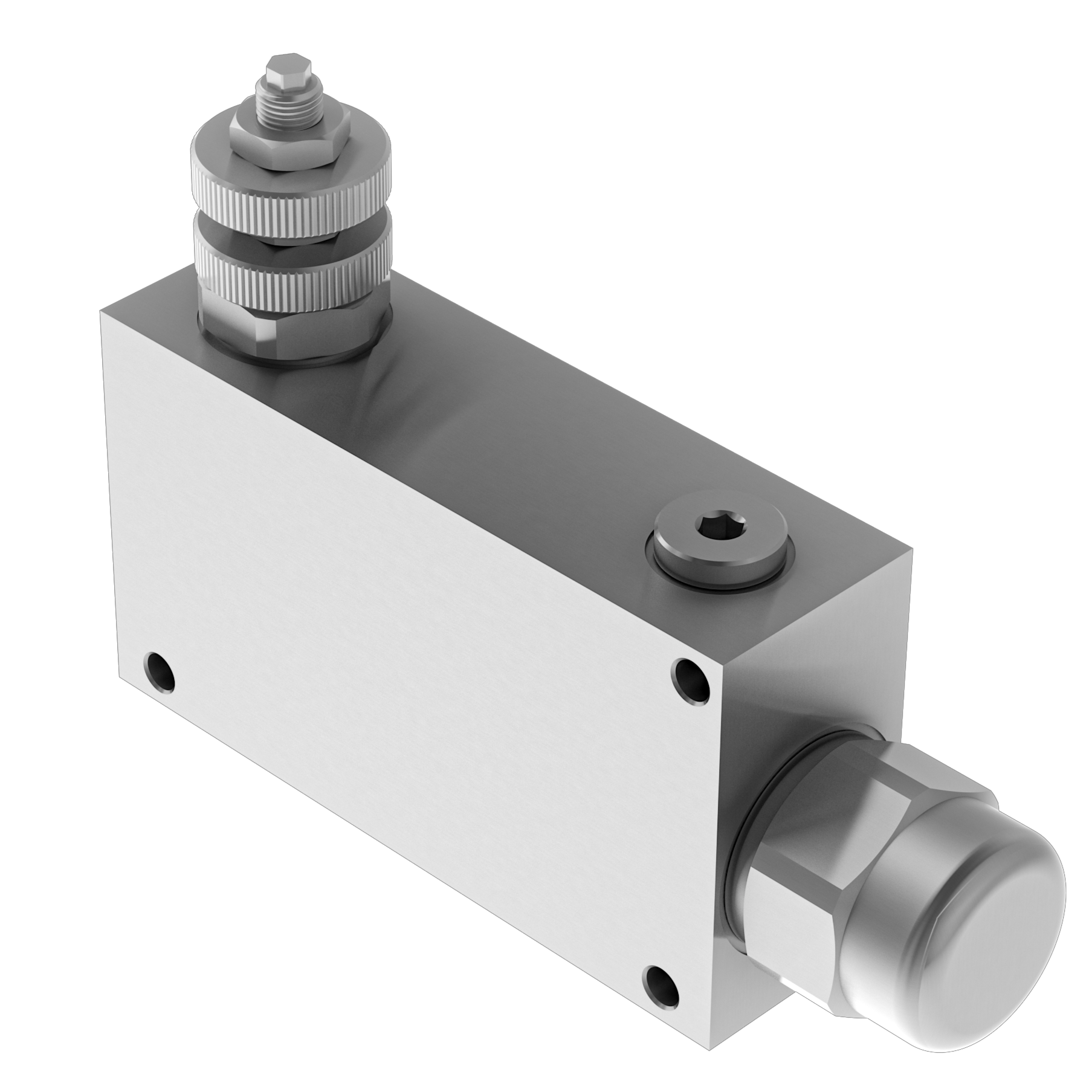

RCP - 3 ways flow control valves, pressure compensated

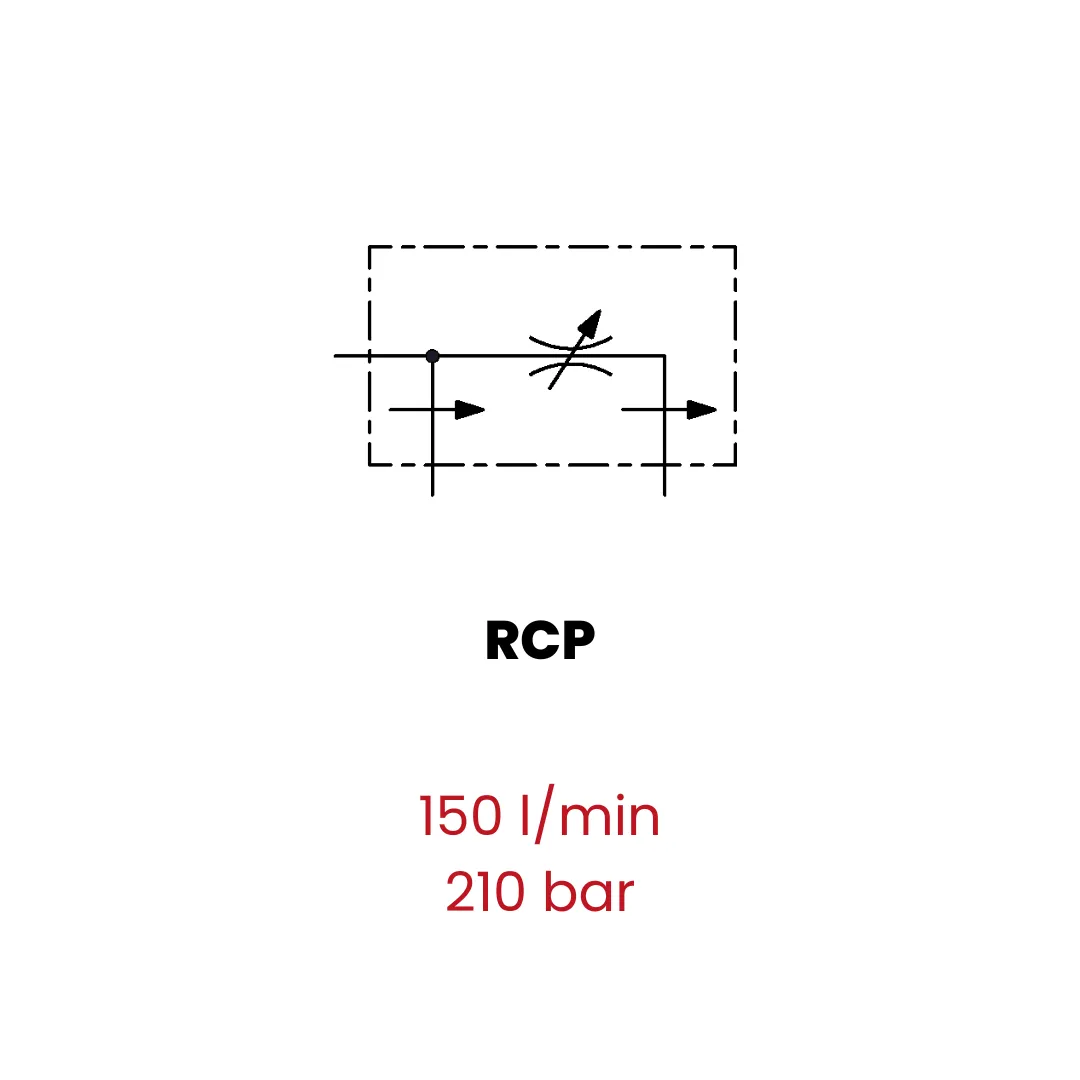

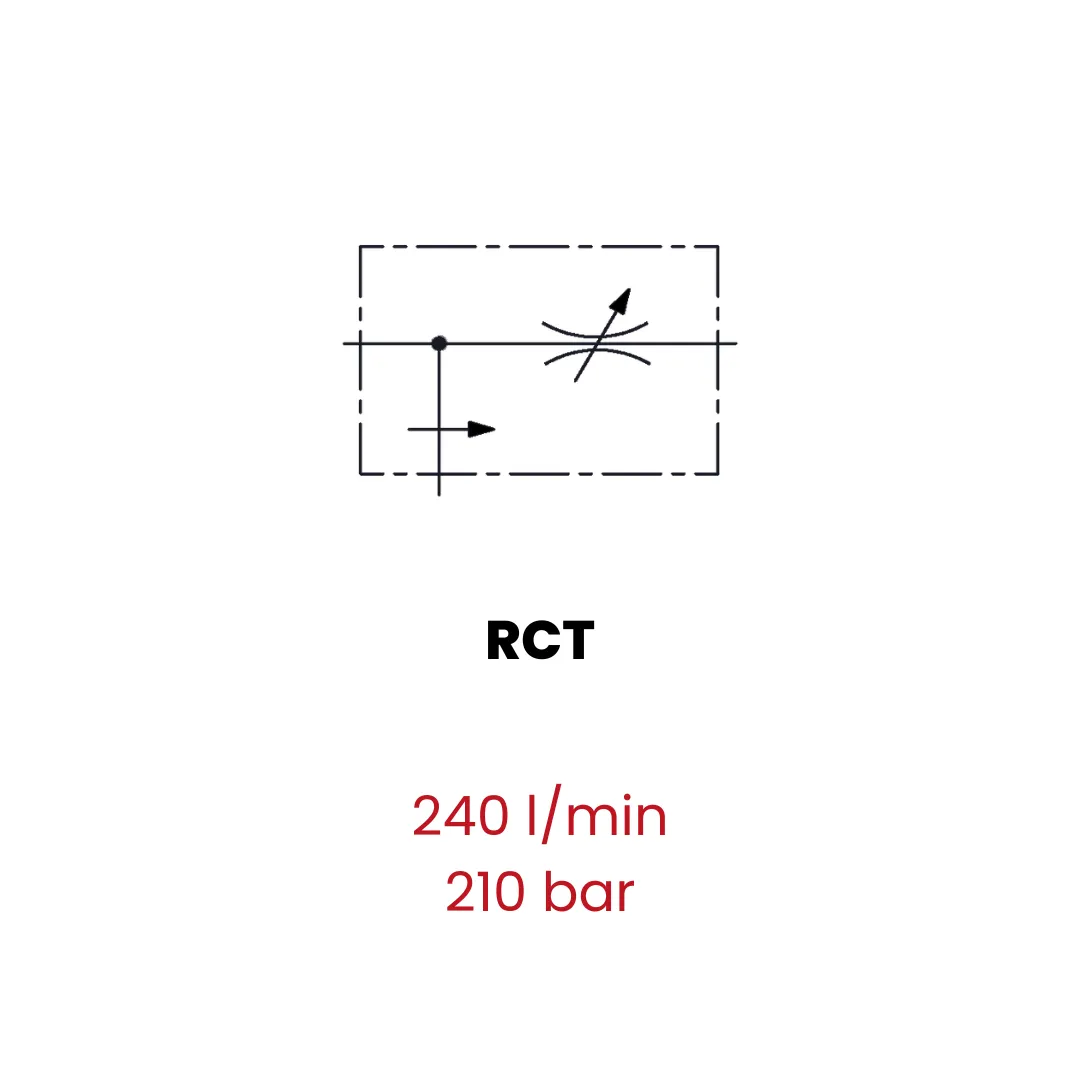

The 3-way flow control valves allow the regulation and constant maintenance of the flow regardless of the load , by means of an internal compensation system, in the RCT version the excess flow goes to the drain, unlike the RCP where the excess flow it is under pressure available for a second use.
Compensated 3 ways flow control valves, with excess oil to tank.
They are used when it is necessary to guarantee a constant flow rate regardless of the working pressure, the excess oil is sent to the tank in the cersion (RCT) while in the version (RCP) the excess oil is sent for a second use. under pressure.
Adjustment is made by turning the upper ring clockwise or, locking is ensured by a second lower ring screw screwed clockwise. The external body is made of aluminum.
