Pressure gauge protection valve

RL-RT - Pressure gauge protection valve

Shut-off in line valves are normally used to protect the pressure gauge.

Technical details

Pressure gauge protection valve

These shut-off  valves, fitted between the pressure line and the pressure gauge, are used to dampen the shock of the pressure when opening to prevent damage to the gauge,and to isolate the gauge from the pressure line when it is not in use.

The rotating nut allows the gauge to be oriented as desired and the presence of the O-ring inside it prevents the leakage of fluids between the gauge and the shut-off valve. All parts are made of zinc-plated steel.

Request informations

"*" indicates required fields

Technical specifications
Max pressure400 bar

Technical documents

Product gallery

Pressure gauge protection valve

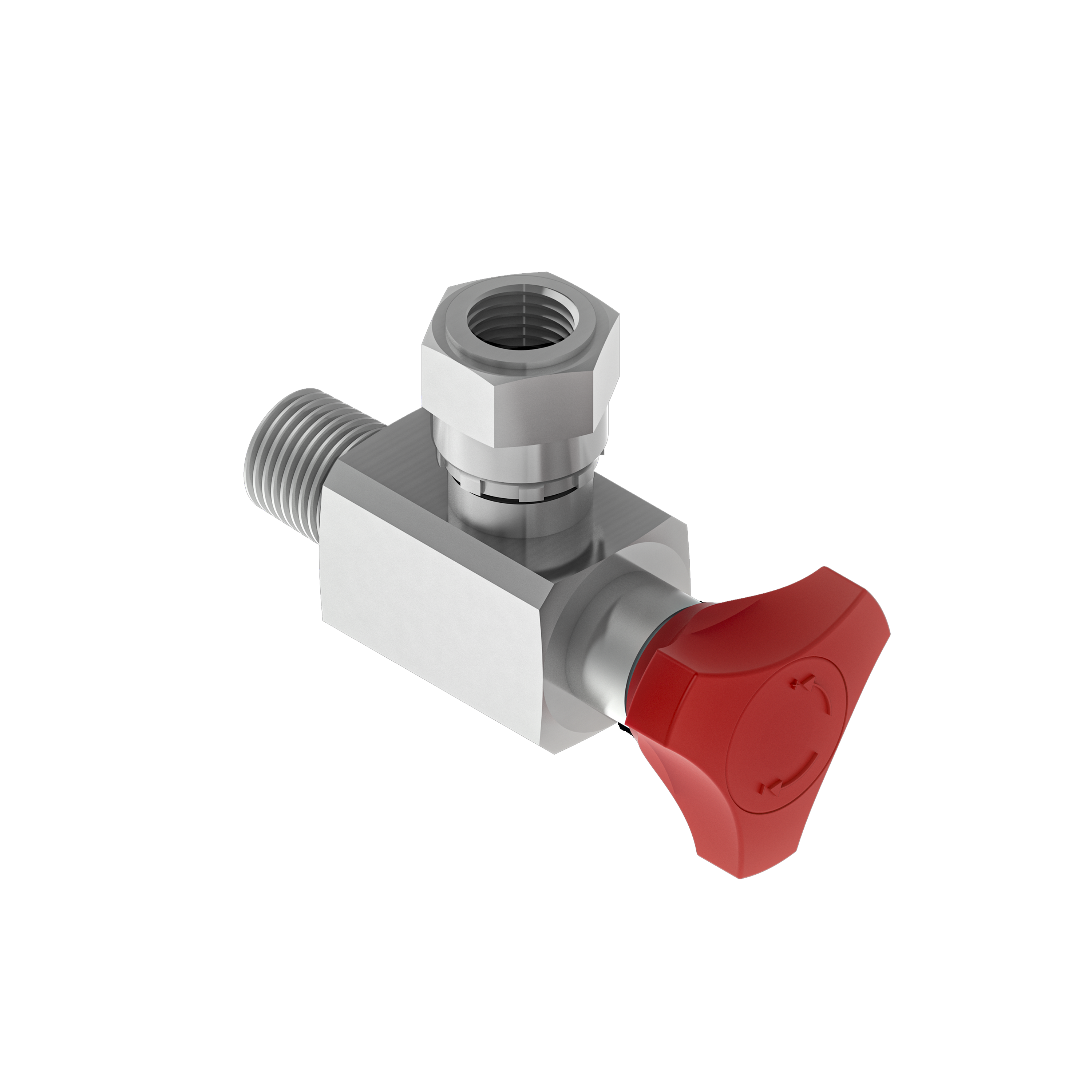

Pressure gauge protection valve - Image 2
Fluid-App
R - Pressure gauge protection valve
R - Pressure gauge protection valve
R - Pressure gauge protection valve
R - Pressure gauge protection valve

Ordering codes

Ordering codeTypeDatasheet page
FA9081FA90841
