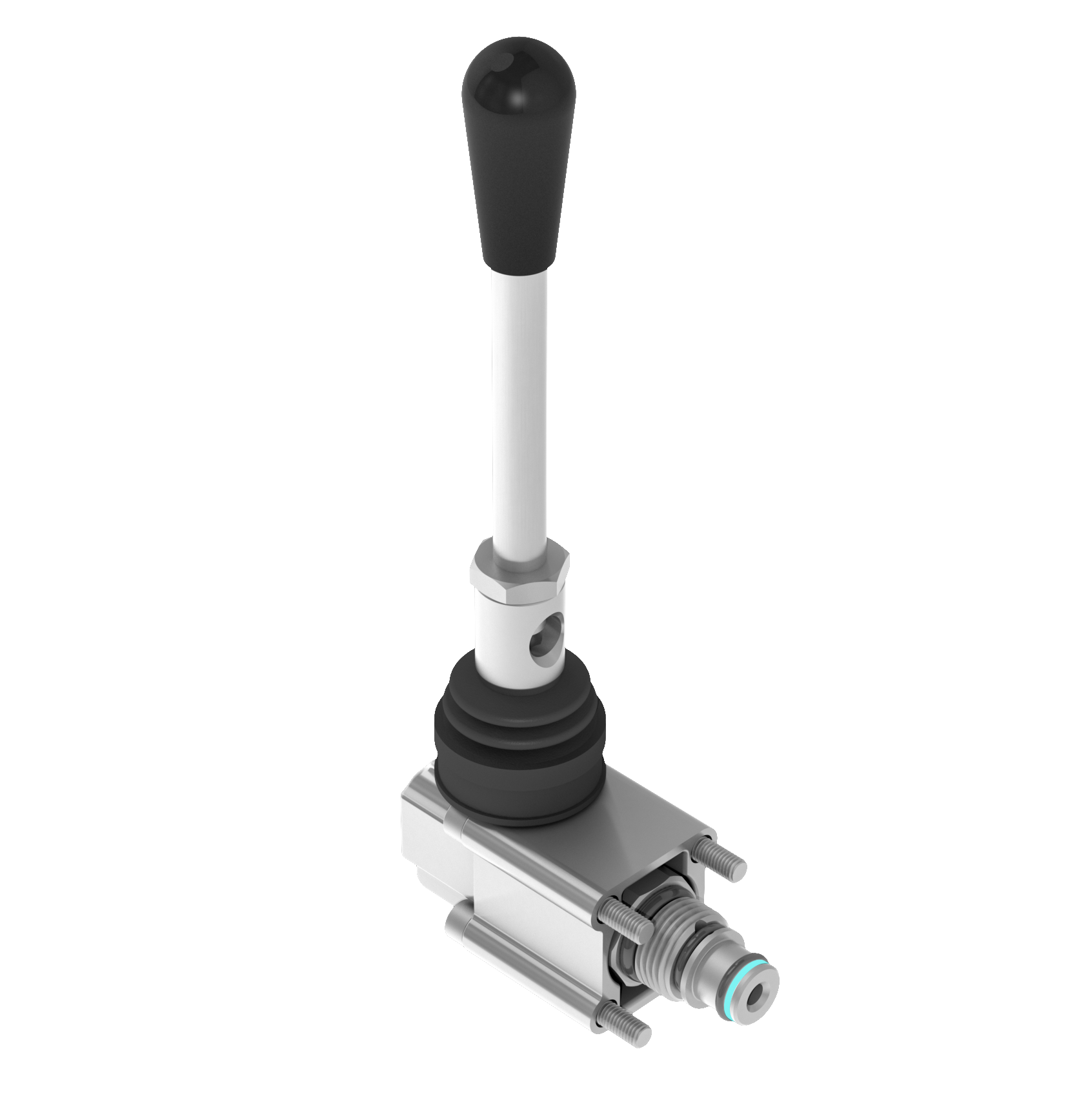

PM2 - Hand pump SAE8/2
PM2 hand pumps are made in SAE8/2 cavities , often mounted as emergency on mini power packs or mounted on integrated blocks.
Technical details
Cartridge hand pumps are usually used as an emergency in small plants
They are available in 2 cm3 / pumped displacement, the outer cap is made of aluminum die-cast, while the cartridge is made of high-strength steel.
The cap can be oriented in the 4 cardinal points and the operating lever positioned vertically or in horizontal.
Request informations
"*" indicates required fields
Technical specifications
| Max pressure | 200 bar |
|---|
Technical documents
Product gallery
Ordering codes
| Ordering code | Type | Datasheet page |
|---|---|---|
| FA7027 | PM2 | 1 |
