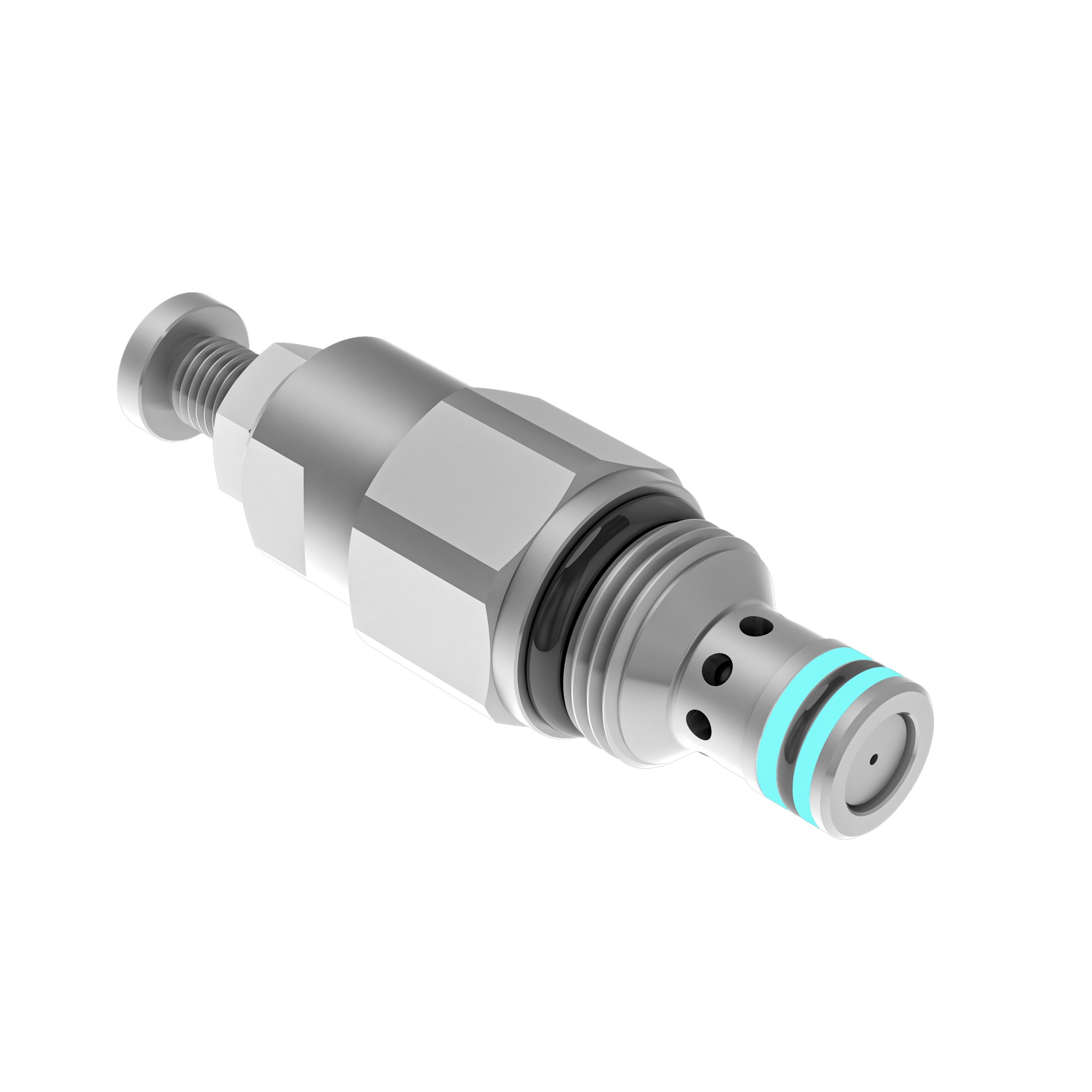

DR2 - Adjustable, compensated flow control valve SAE8/2

DR2 - Adjustable, compensated flow control valve SAE8/2 is a Fluid-App hydraulic component used to regulate hydraulic flow and therefore influence actuator speed or flow distribution in the circuit.

Technical identity

• Model: DR2
• Family: DR2

Ordering variants

This model has 8 recorded ordering variants in the imported catalogue data.

Ordering variants

• Ordering codes: FA7028, FA7029, FA7030, FA7031, FA7032, FA7033
• TYPE examples: DR2C1, DR2C2, DR2C3, DR2C4, DR2C5, DR2C6

Published technical data

• Max flow: DR2C1 0,6-2,2 [0,16-0,58], 0,8-3 [0,21-0,79], 1,3-5,1 [0,34-1,35], 16UNF-2B 1,9-6,8 [0,5-1,8], See cavity 2,6-9,1 [0,69-2,4], DR2C6 4-14,4 [1,06-3,08]
• Max pressure: 0,9 [0,03], 1 [0,04], 1,3 [0,05], 1,5 [0,06], 1,7 [0,07], 2,2 [0,09]

Select the exact ordering code and TYPE by matching the required connection, pressure, flow, cavity and other published parameters. Values may differ between variants of the same technical model.

For availability, lead time, quotation or model matching, contact SUMY with the model, TYPE or ordering code whenever available.
