VDF3 - Divider/combiner valve SAE10/4

VDF3 - Divider/combiner valve SAE10/4

The flow divider/combiner valves guarantee the division of the flow into two equal parts or the reunification in the opposite direction.

Technical details

Cartridge flow divider

They are used to move two identical actuators powered by the same pump and controlled by the same distributor, because they allow the fluid to be divided into two equal parts in one direction and reunited in the opposite direction, regardless of the pressure and flow generated in the circuit.

The external body is made of aluminum.

Request informations

"*" indicates required fields

Technical specifications
Max flow40 l/min
Max pressure350 bar

Technical documents

Product gallery

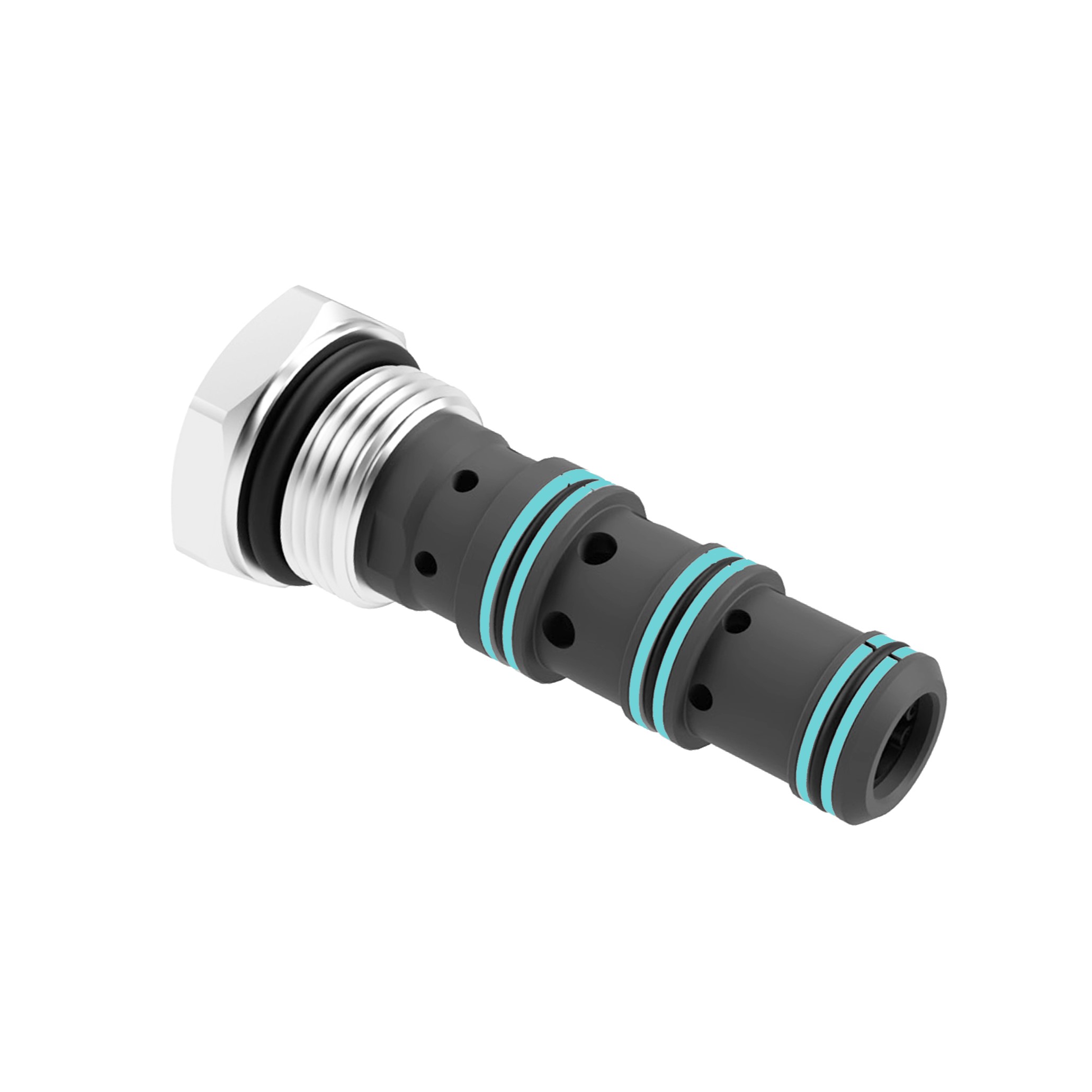

VDF3 - Divider/combiner valve SAE10/4

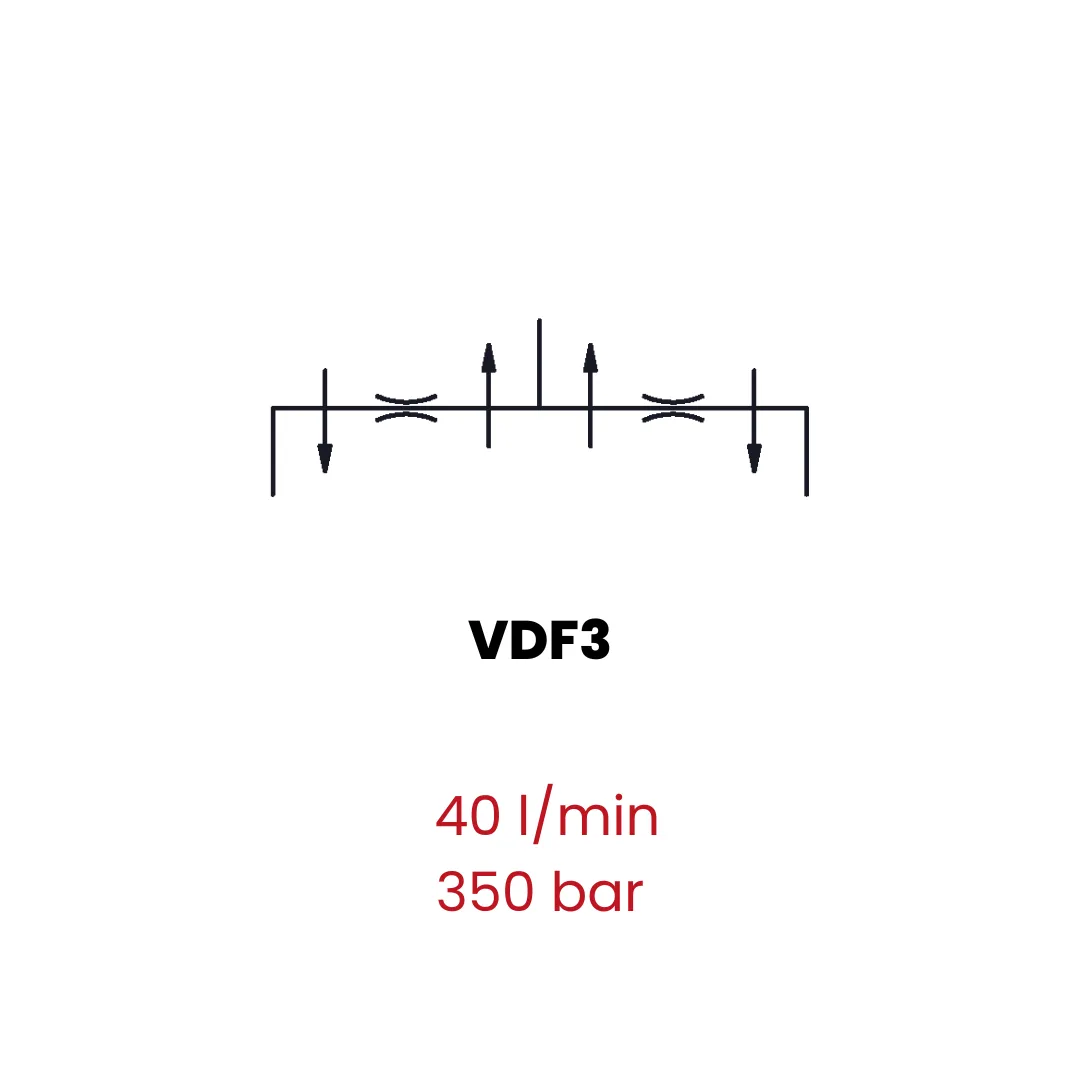

Divider/combiner valve SAE10/4 - Image 2
Fluid-App
Divider/combiner valve SAE10/4

Ordering codes

Ordering codeTypeDatasheet page
FA7037VDF3S11
FA7038VDF3S21
FA7039VDF3S31
FA7040VDF3S41
