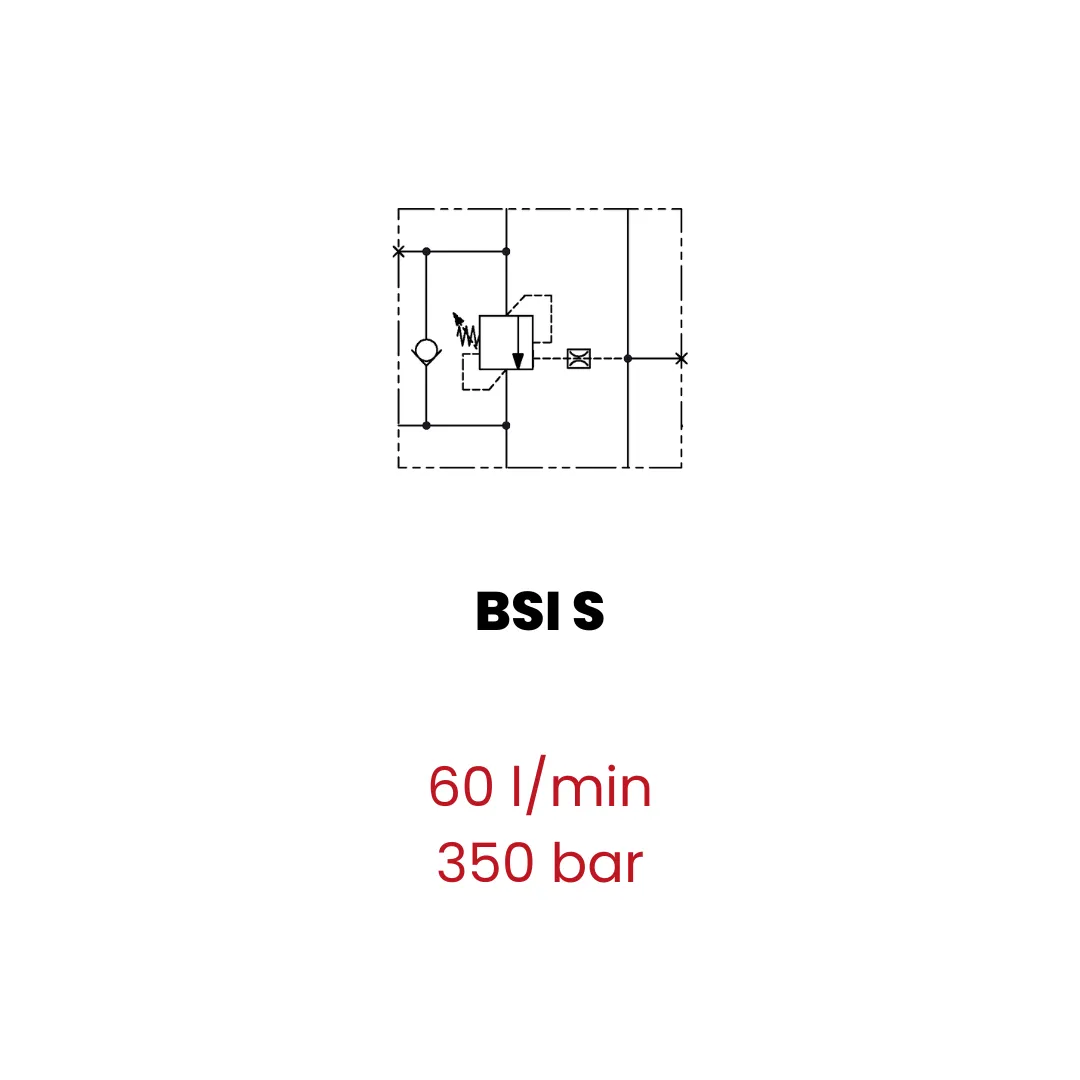

BSI - Single counterbalance valve for open center, single flanged version
BSI - Single counterbalance valve for open center, single flanged version (BSI) is a Fluid-App hydraulic component designed to hold or control an actuator load and to prevent unintended movement until the required pilot or control condition is present. This page combines model identity, available ordering variants and published technical data in one product record.
Technical details
BSI - Single counterbalance valve for open center, single flanged version is a Fluid-App hydraulic component designed to hold or control an actuator load and to prevent unintended movement until the required pilot or control condition is present.
Technical identity
- Model: BSI
- Family: BSI SAE
Ordering variants
This model has 6 recorded ordering variants in the imported catalogue data.
Ordering variants
- Ordering codes: FA1055, FA1056, FA1057, FA1058, FA1059, FA1060
- TYPE examples: BSI1S21, BSI1S35, BSI2S21, BSI2S35, BSI3S21, BSI3S35
Published technical data
- Ports: 34,5 [1,36] 17,5 [0,69] 47,5 [1,87] FA1060 BSI3S35
- Pilot ratio: 1:8,1
Select the exact ordering code and TYPE by matching the required connection, pressure, flow, cavity and other published parameters. Values may differ between variants of the same technical model.
For availability, lead time, quotation or model matching, contact SUMY with the model, TYPE or ordering code whenever available.
