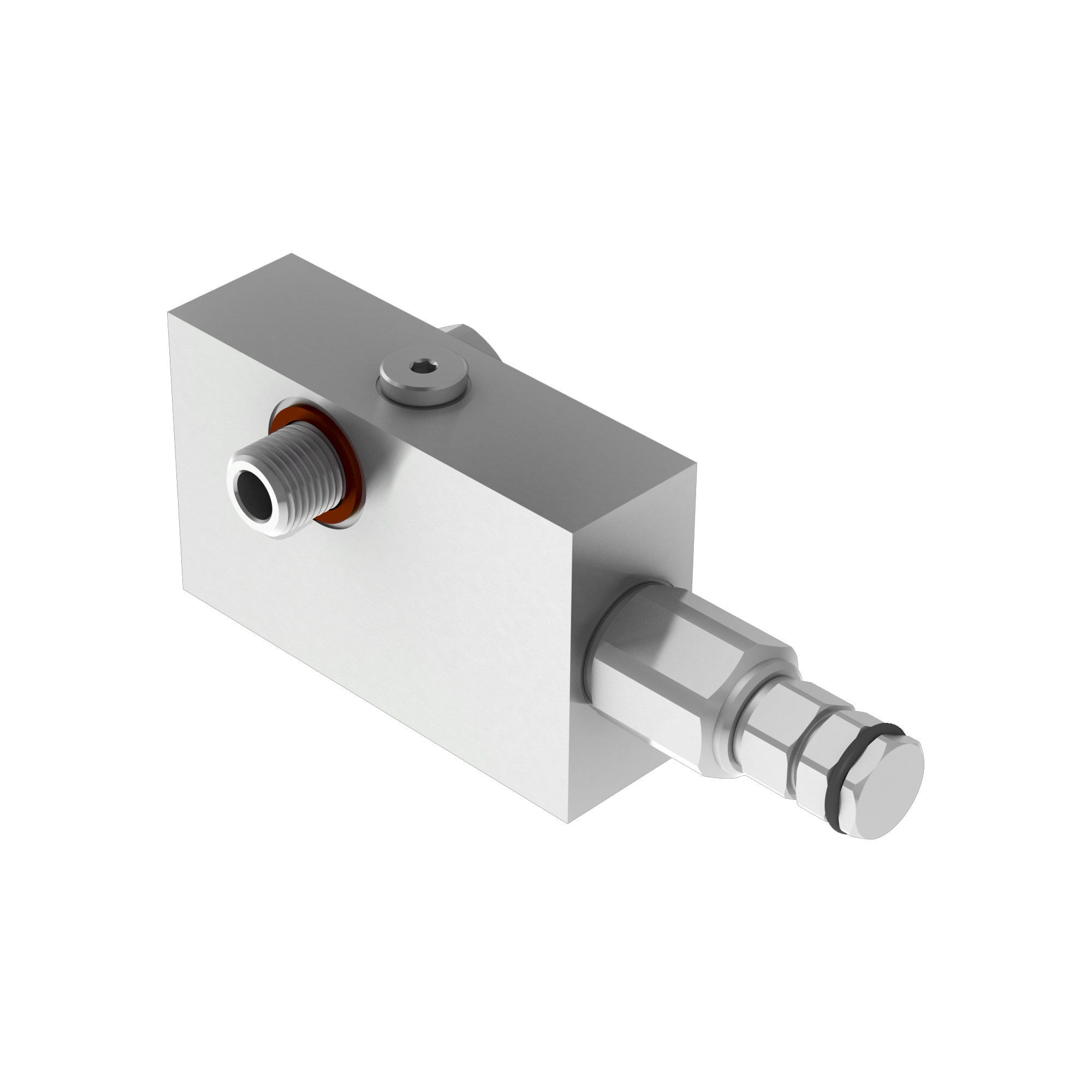

BSP - Bolt-fitting Single counterbalance valves for closed center
The counterbalance valves allow to keep a load locked, the built-in relief valve protects the system from overpressure in the cylinder by sending the oil to drain.
Technical details
The counterbalance valves allow to keep a load locked, the built-in relief valve protects the system from overpressure in the cylinder by sending the oil to drain.
Technical specifications
| Max flow | 60 l/min |
|---|---|
| Max pressure | 350 bar |
Technical documents
Product gallery
Ordering codes
| Ordering code | Type | Datasheet page |
|---|---|---|
| FA1077 | BSP3B21 | 1 |
| FA1078 | BSP3B35 | 1 |
