Incoming, in-process, and final inspection of parts and assemblies against project drawings and acceptance criteria, including inspection records, nonconformity follow-up, and packaging suited to product sensitivity and transport conditions.
The scope is written around the actual workflow rather than unsupported capacity or accuracy claims.
Quality control is meaningful only when acceptance criteria are clear. For each order, drawings, datasheets, purchase orders, ITPs, and explicitly referenced standards form the inspection basis. Measurement methods must match the characteristic and its tolerance range.

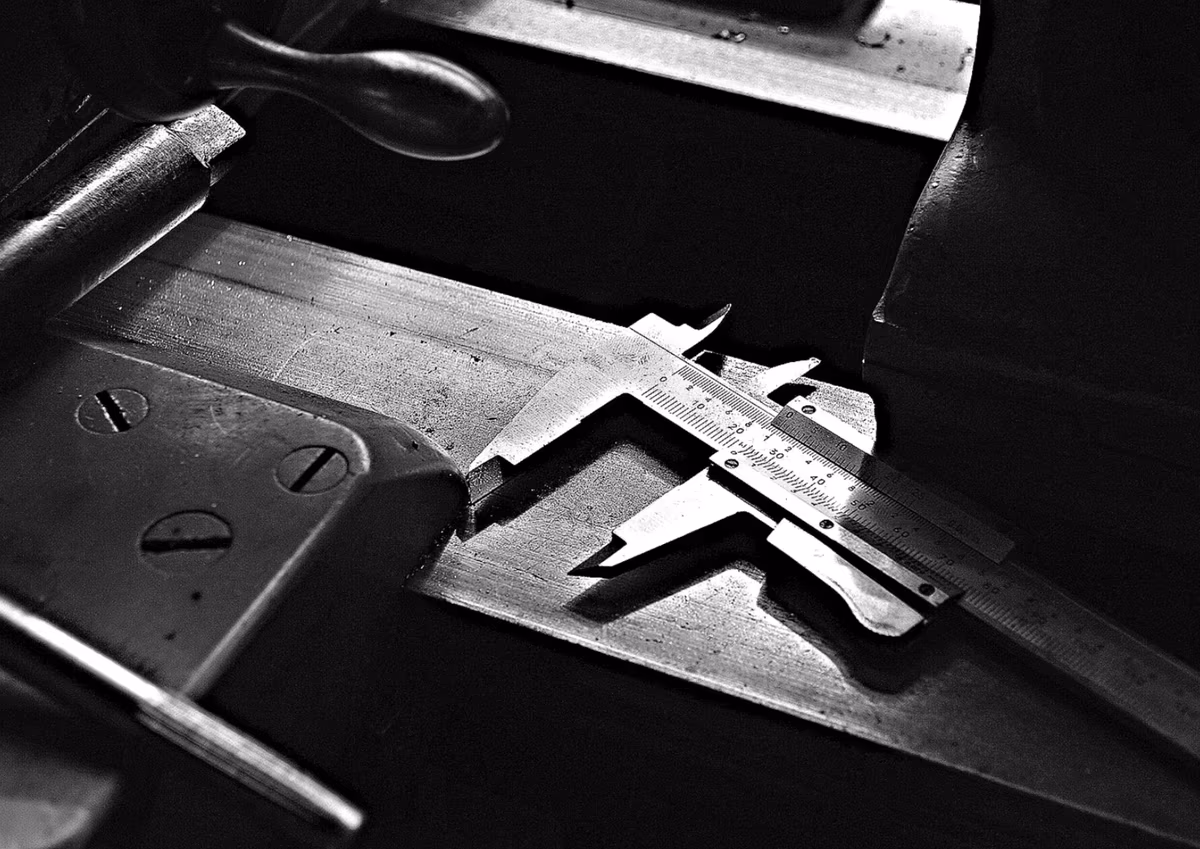

Dimensional inspection uses suitable equipment such as calipers, micrometers, dial indicators, and gauges as required. Calibration status is checked before use, and results are recorded for specified characteristics. Where nonconformities occur, NCRs and corrective records can become part of the project quality file.
Pressure, leak, NDT, or fluid-cleanliness checks are performed or coordinated only when included in project scope. Test pressure, hold time, NDT method, and acceptance limits come from the equipment specification or referenced standard, not from one universal figure for every product.
Captions describe only defensible context; equipment capacity or compliance levels are not inferred from photos.
Project details vary, but the control and delivery logic generally follows this sequence.
Review drawings, datasheets, order requirements, and Hold/Witness points where an ITP exists.
Check specified characteristics with suitable instruments and record accept, reject, or review status.
Pressure/leak tests, NDT, or fluid-cleanliness checks are performed or coordinated only when technically required.
Nonconformities are recorded and followed through technical disposition, correction, or customer approval.
Clean, protect surfaces/openings, package the item, and verify documents before dispatch.
The clearer the technical input at the start, the less back-and-forth is needed during sourcing, manufacturing, or inspection.
Send a drawing, part photo, part number, datasheet, or problem description so the requirement can be technically reviewed before quotation or manufacturing.
Hydraulic equipment quality control should begin with defined acceptance criteria before purchasing or manufacturing. For hydraulic pumps, valves, cylinders, manifolds and power units, appearance is not enough. Product code, pressure and flow, mounting dimensions, material records, cleanliness, leak tightness and function must match the order.
Machined components require inspection of critical dimensions and internal passages. Welded reservoirs and skids require weld, distortion, leakage and coating checks. A useful report identifies the characteristic, method or instrument and the requirement used for acceptance.
Hydraulic pump testing, hydraulic valve verification, cylinder pressure and leakage testing, manifold cleanliness, reservoir inspection and power-unit functional testing are central subjects.
